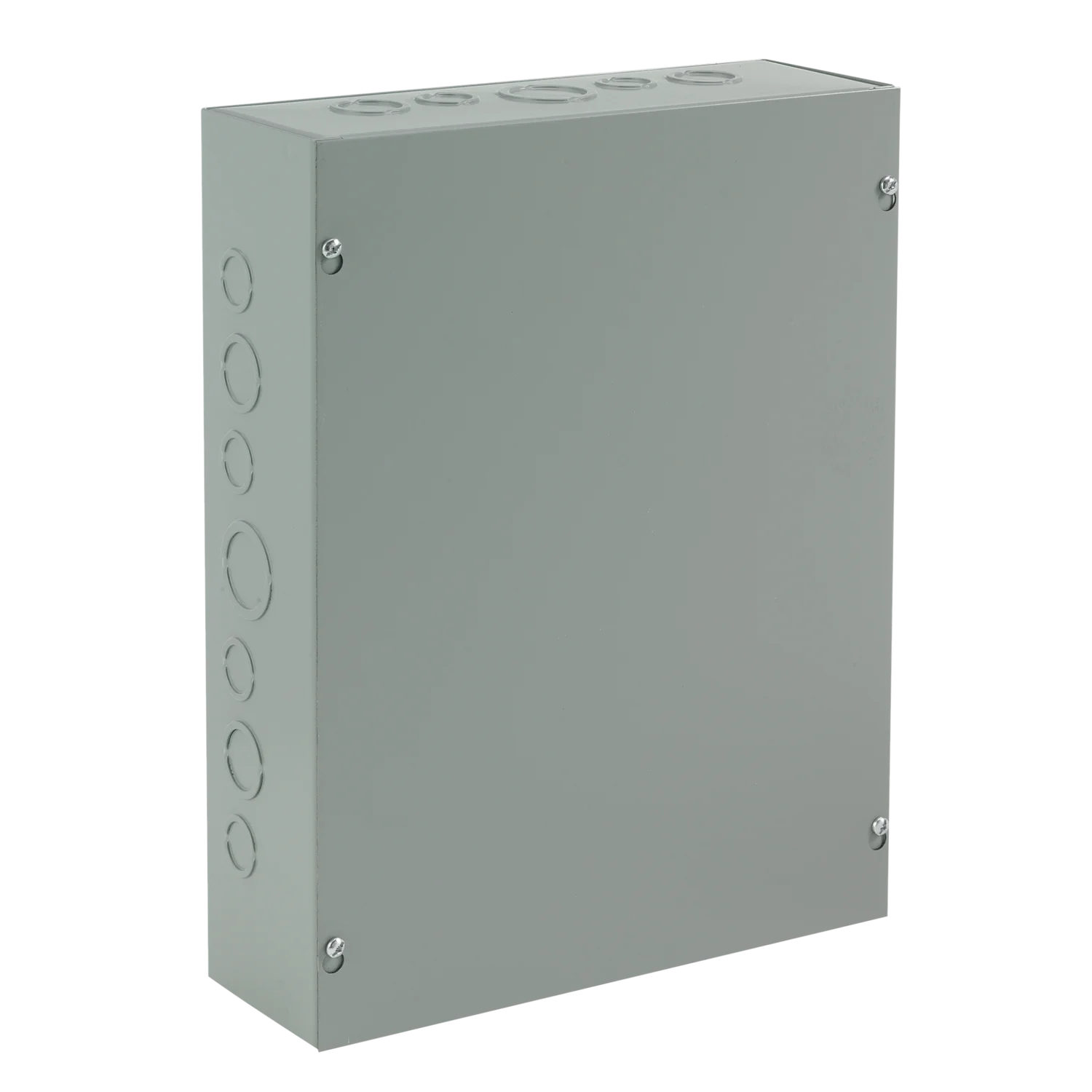

Nvent ASE12X10X6 A90P1 pull box screw cover (12 x 10 x 6 in)

Product Description

The nVent ASE12X10X6 is a steel screw-cover pull/junction box sized 12 x 10 x 6 in, rated NEMA 1/IP30 for indoor commercial and general industrial applications. It includes flat removable covers fastened with plated steel screws, a polyester powder-painted finish, and provision for grounding and rear mounting holes. The enclosure provides multiple concentric knockouts on all four sides for cable entry and can be used for flush installations with optional accessories.

• Steel construction with polyester powder-painted finish and flat removable screw cover secured by plated steel screws
• Concentric knockouts on all four sides: (8) 3/4–1 in, (8) 1/2–3/4 in, and (4) 1–1-1/4 in; provision for grounding and mounting holes on back
• Type 1 / NEMA 1 (IP30) enclosure, Series A90P1, UL 50/50E and cUL listed (File No. E27525); IEC 60529 IP30

Product Highlights

12 x 10 x 6 in steel screw-cover Type 1 pull box with multiple concentric knockouts, rear mounting holes, and grounding provision

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: ASE12X10X6

Technical Specifications

• Brand: nVent
• Manufacturer Part Number: ASE12X10X6
• Series: A90P1
• Product Type: Pull box / screw-cover enclosure (Type 1)
• Material: Steel
• Finish: Polyester powder-painted
• Height: 12 in
• Width: 10 in
• Depth: 6 in
• Dimensions: 12 x 10 x 6 in (H x W x D)
• NEMA Rating: NEMA 1 / IP30
• Knockouts: (8) 3/4 to 1 in, (8) 1/2 to 3/4 in, (4) 1 to 1-1/4 in concentric knockouts on all four sides
• Cover Type: Flat removable screw cover fastened with plated steel screws
• Mounting Type: Flush (provision for rear mounting holes)
• Grounding Provision: Yes
• Standards/Approvals: UL 50/50E Listed (File No. E27525); cUL Listed per CSA C22.2 No. 40 (File No. E27525); IEC 60529 IP30
• Body Gauge: 16, 14 or 12 ga steel or plated steel
• Cover Screw Quantity: 4
• Bulletin Number: A90P1
• Catalog Number / Article Number: ASE12X10X6 / 43210
• UPC: 783510432102
