Nvent ASE10X8X6 Screw-Cover Enclosure 10 x 8 x 6 in

Product Description

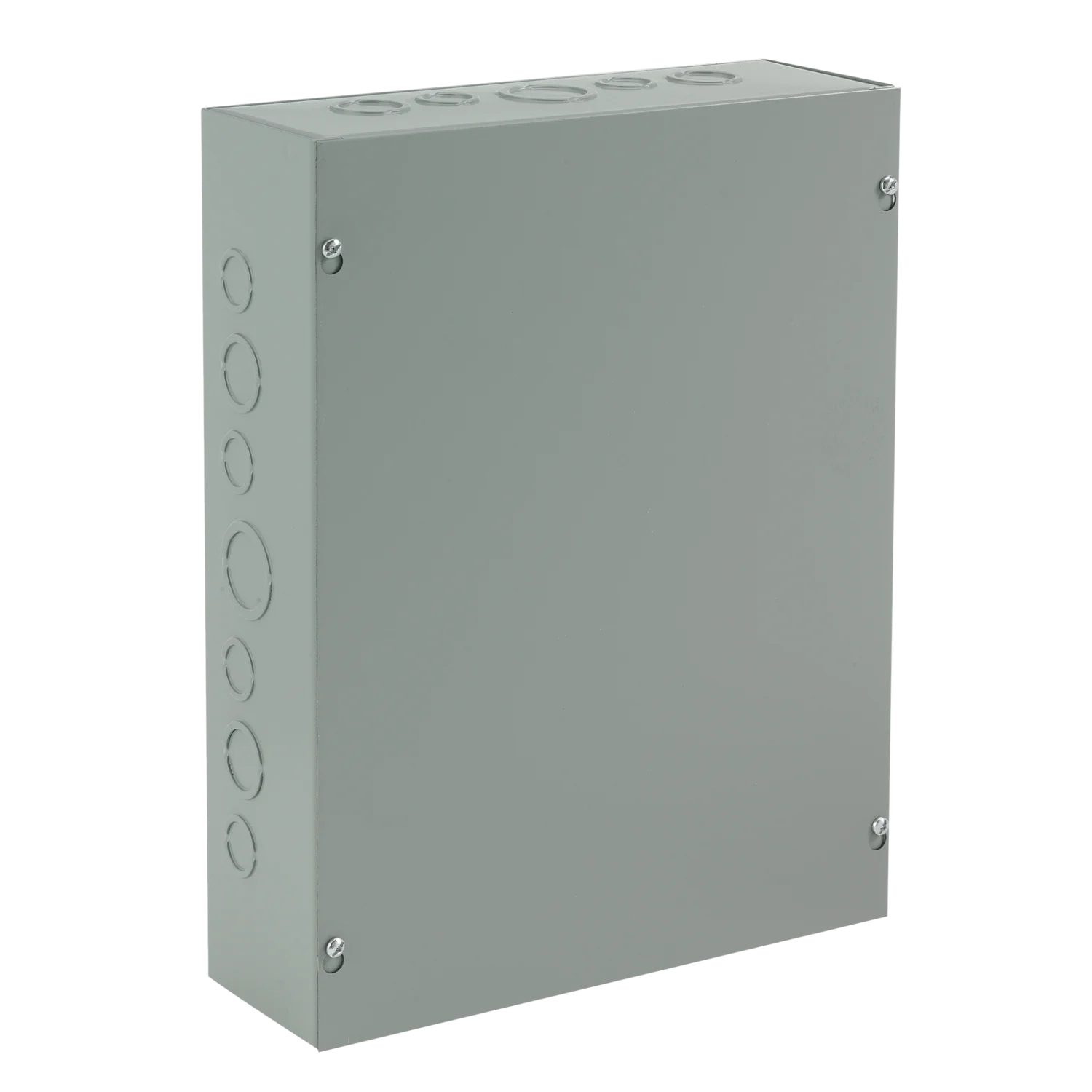

nVent ASE10X8X6 is a Type 1 screw-cover junction and pull box made of painted mild steel with concentric knockouts on all four sides and a removable flat cover secured by plated steel screws. The enclosure measures 10 in x 8 in x 6 in, includes keyhole screw slots, mounting holes on the back, and provision for grounding, and meets UL 50/50E, cUL per CSA C22.2 No 40, NEMA/EEMAC Type 1 and IEC 60529 (IP30).

• Dimensions: 10 in (H) x 8 in (W) x 6 in (D); weight 6.7 lb
• Construction: painted mild steel, 16 ga body and 16 ga door; removable concentric knockouts included
• Features: screw cover with keyhole slots, four plated steel cover screws, mounting holes on back, provision for grounding

Product Highlights

Type 1 painted mild steel screw-cover enclosure with knockouts, keyhole screw slots, back mounting holes, and grounding provision; complies with UL, cUL, NEMA and IEC IP30 standards.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: ASE10X8X6
• Country of Origin: Mexico

Technical Specifications

• Brand: nVent
• Manufacturer Part Number: ASE10X8X6
• Catalog Number: ASE10X8X6
• Article Number: 43180
• Bulletin Number: A90P1
• Height: 10 in
• Width: 8 in
• Depth: 6 in
• Material: Mild Steel
• Finish: Painted (ANSI 61 gray)
• Body Thickness: 16 ga
• Door Thickness: 16 ga
• Knockouts Included: Yes
• Knockout Pattern A Sides: F-G-H-I
• Knockout Pattern B Sides: F-G-H-I
• Cover Type: Screw cover (flat removable)
• Cover Screw Quantity: 4
• Keyhole Screw Slots: Yes
• Provision for Grounding: Yes
• Mounting Type: Wall (mounting holes on back)
• Weight: 6.7 lb
• UPC: 783510431808
• NEMA Rating: Type 1
• IP Rating: IP30
• Standards / Certifications: UL 50, UL 50E Listed; cUL per CSA C22.2 No 40; NEMA/EEMAC Type 1; IEC 60529
• Country of Origin: MX
