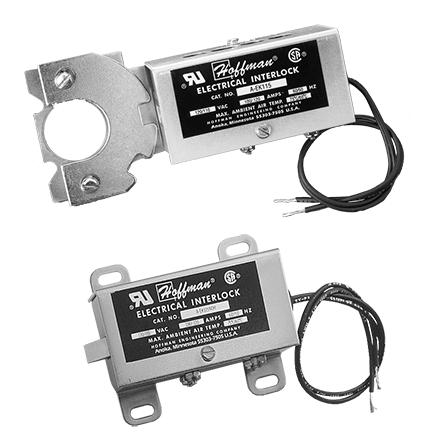

nVent AEK115NDH AEK-NDH Style Electrical Interlock 115V Electric

Product Description

The nVent AEK115NDH is an electrical interlock designed for use with Hoffman NEMA 1/12/4/4X enclosures and various junction boxes. This model operates at 115 VAC and 60 Hz. The interlock ensures safety by preventing door access while the equipment is energized.

• Rugged steel construction
• Designed for heavy industrial use
• Includes solenoid assembly and mounting hardware

Product Highlights

This interlock is critical for providing reliable safety measures for equipment in electrical enclosures.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351026190

Technical Specifications

• Type: AEK-NDH Style
• Application: For positive internal safety lockout on electrical enclosures
• Dimensions: 3.25 inches H x 3.75 inches W x 1.88 inches D
• Material: Steel
• Finish: Zinc Plated
• Series: A80
• Specifications: 115 VAC, 60 Hz
• Standards/Approvals: RoHS Compliant, UL 508A File No. E61997, CSA File No. 42186, EU Certified
• Suitable For Use With: Hoffman NEMA 1/12/4/4X Enclosures and specific junction boxes
