nVent AEK115 HOF 115V ELECTRIC INTERLOCK

Product Description

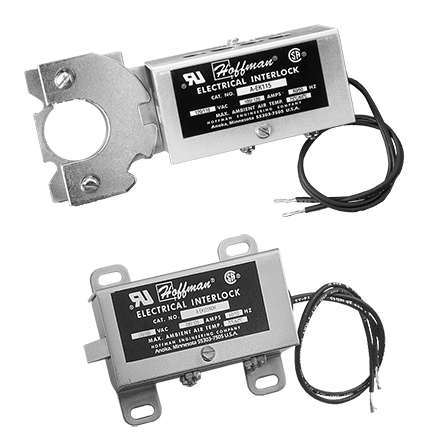

The nVent AEK115 is an electric interlock designed for use with Hoffman NEMA 12 door latching mechanism enclosures. Operating at 120 VAC and 60 Hz with a rating of 0.1/0.63 A, this interlock provides a reliable solution for enhancing safety during electrical maintenance.

• Constructed from durable steel with a zinc-plated finish.
• Features solenoids rated for continuous duty suitable for heavy industrial environments.
• Installation requires separate door handles and latching mechanisms.

Product Highlights

This interlock provides positive internal safety lockout for electrical enclosures while the equipment is energized, ensuring safe operation.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351026800

Technical Specifications

• Application: For providing positive internal safety lockout on electrical enclosures while the equipment is energized
• Dimensions: 6.19 in W x 1.81 in D
• Finish: Zinc Plated
• Includes: Solenoid Assembly, Strike Plate/Bracket and Instructions
• Manufacturer Part Number: AEK115
• Material: Steel
• Series: A80
• Specifications: 120 VAC, 60 Hz, 0.1/0.63 A
• Standards/Approvals: RoHS Compliant, UL 508A File No. E61997, CSA File No. 42186, EU Certified
• Suitable For Use With: Hoffman NEMA 12 Door Latching Mechanism Enclosures
• Type: AEK Style
