nVent A8R64HCR HOF NEMA-3R ENCL 8 in L x 6 in W x 4 in D

Product Description

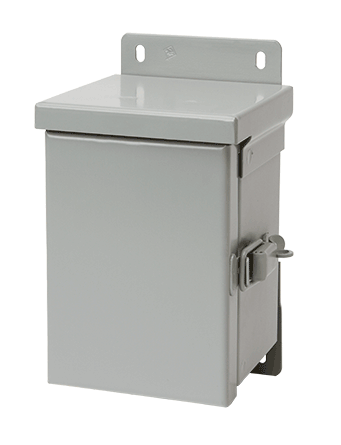

The nVent HOFFMAN A8R64HCR is a compact wall-mounted enclosure designed for electrical applications. It has dimensions of eight inches in length, six inches in width, and four inches in depth. The enclosure meets NEMA 3R standards, providing protection from rain, sleet, and snow.

• Steel construction ensures durability and resistance to environmental factors.
• Hinged cover with provisions for padlocking for added security.
• Multiple cable entry knockouts for flexibility in installation.

Product Highlights

This small enclosure series A3SM is ideal for applications that require reliable housing for electrical components.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: A8R64HCR

Technical Specifications

• Type: Small
• NEMA Rating: NEMA 3R
• Material: Steel
• Finish: Galvanized/Powder Coated
• Mounting Type: Wall
• Depth: 4 in
• Width: 6 in
• Length: 8 in
• Cover Type: Hinged
• Lock: Draw Pull Catch Padlock
• Panel Size: 4-1/4 in W x 6-1/4 in H
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, IEC 60529, UL 50
• Cable Entry Size: (2) 1/2 to 3/4 in, (1) 3/4 to 1 in Knockout Bottom
• Series: A3SM
• Color: Gray
