nVent A8R64 A8R64 HOF NEMA 3 SCREW COVER ENCL

Product Description

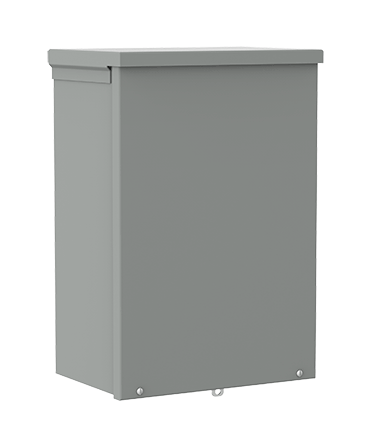

The nVent A8R64 is an enclosure designed for outdoor applications, suitable for use as a wiring or junction box. It has a height of eight inches, a width of six inches, and a depth of four inches. This model features a screw cover and is compliant with NEMA 3R/IP32 standards. It is constructed from galvanized steel for added durability.

• Outdoor use as a wiring or junction box
• Knockouts for cable entry
• Galvanized steel material

Product Highlights

The nVent A8R64 enclosure is essential for protecting electrical connections in outdoor environments. It enables easy cable entry and features a secure lock system.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: A8R64

Technical Specifications

• Application: For outdoor application as a wiring or junction box
• Cable Entry Size: (1) 3/4 to 1 in, (2) 1/2 to 3/4 in Knockout Bottom
• Color: Gray
• Cover Type: Screw
• Depth: 4 in
• Finish: Galvanized
• Height: 8 in
• Lock: Padlock
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 3R/IP32
• Series: A90S3
• Standards/Approvals: cUL Listed, CSA C22.2 File No. 94, UL 50, UL 50E Listed File No. E27525, IEC 60529
• Type: A Style Body
• Width: 6 in
