Nvent A8R64 A style NEMA 3R screw cover enclosure 8 x 6 x 4

Product Description

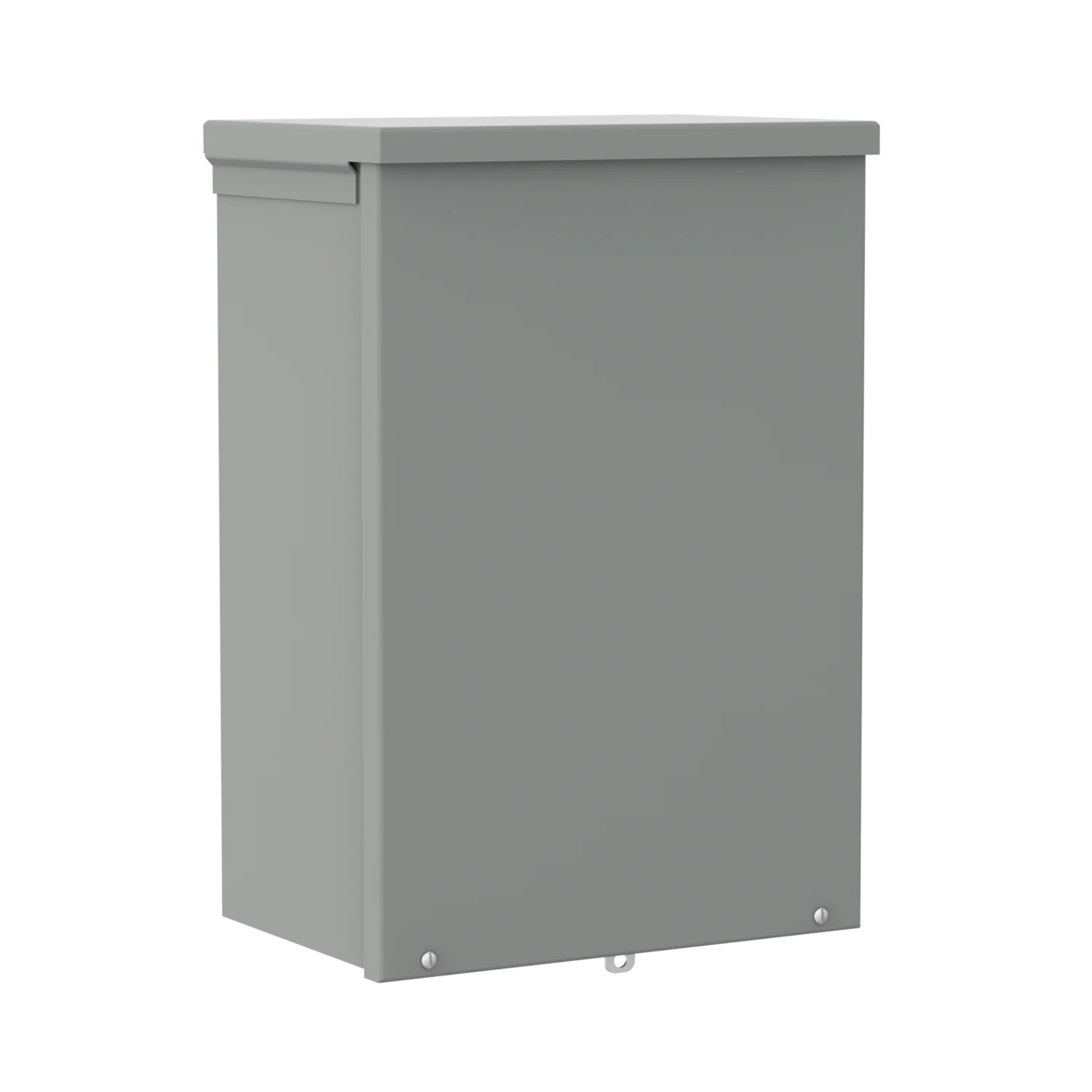

nVent A8R64 is an A-style NEMA 3R screw-cover enclosure intended for outdoor wiring and junction box applications. The unit is constructed of galvanized steel with approximate exterior dimensions 8 in H x 6 in W x 4 in D and a slip-on removable screw cover fastened along the bottom edge. It provides raintight protection (IP32) with a drip-shield top, embossed mounting holes, bottom knockouts for cable entry, and a provision for padlocking.

• Galvanized steel A-style enclosure, dimensions 8 in H x 6 in W x 4 in D; slip-on screw cover fastened with plated steel screws
• NEMA 3R / IP32 raintight rating with drip-shield top and seam-free sides for outdoor wiring and junction box use
• Bottom knockouts: (1) 3/4 to 1 in and (2) 1/2 to 3/4 in; embossed wall-mounting holes and provision for padlocking

Product Highlights

NEMA 3R A-style wall-mount steel enclosure, 8 x 6 x 4 in, screw cover, bottom knockouts and padlock provision

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A8R64
• Country of Origin: Mexico

Technical Specifications

• Brand: nVent
• Manufacturer Part Number: A8R64
• Series: A90S3
• Type: A style body / Junction box
• NEMA Rating: NEMA 3R
• IP Rating: IP32
• Material: Galvanized steel
• Finish: Galvanized
• Dimensions: 8 in H x 6 in W x 4 in D
• Height: 8 in
• Width: 6 in
• Depth: 4 in
• Cover Type: Screw cover (slip-on removable cover fastened with plated steel screws along bottom edge)
• Mounting Type: Wall mount (embossed mounting holes on back)
• Knockouts / Cable Entry: (1) 3/4 to 1 in and (2) 1/2 to 3/4 in knockouts in bottom
• Padlock Provision: Yes
• Gasketing: No gasketing
• Body Thickness: 16, 14 or 12 ga galvanized steel
• Standards / Approvals: cUL Listed; CSA C22.2 File No. 94; UL 50; UL 50E (File No. E27525); IEC 60529
• Weight: 4.4 lb
• Country of Origin: Mexico
• UPC: 783510380304
