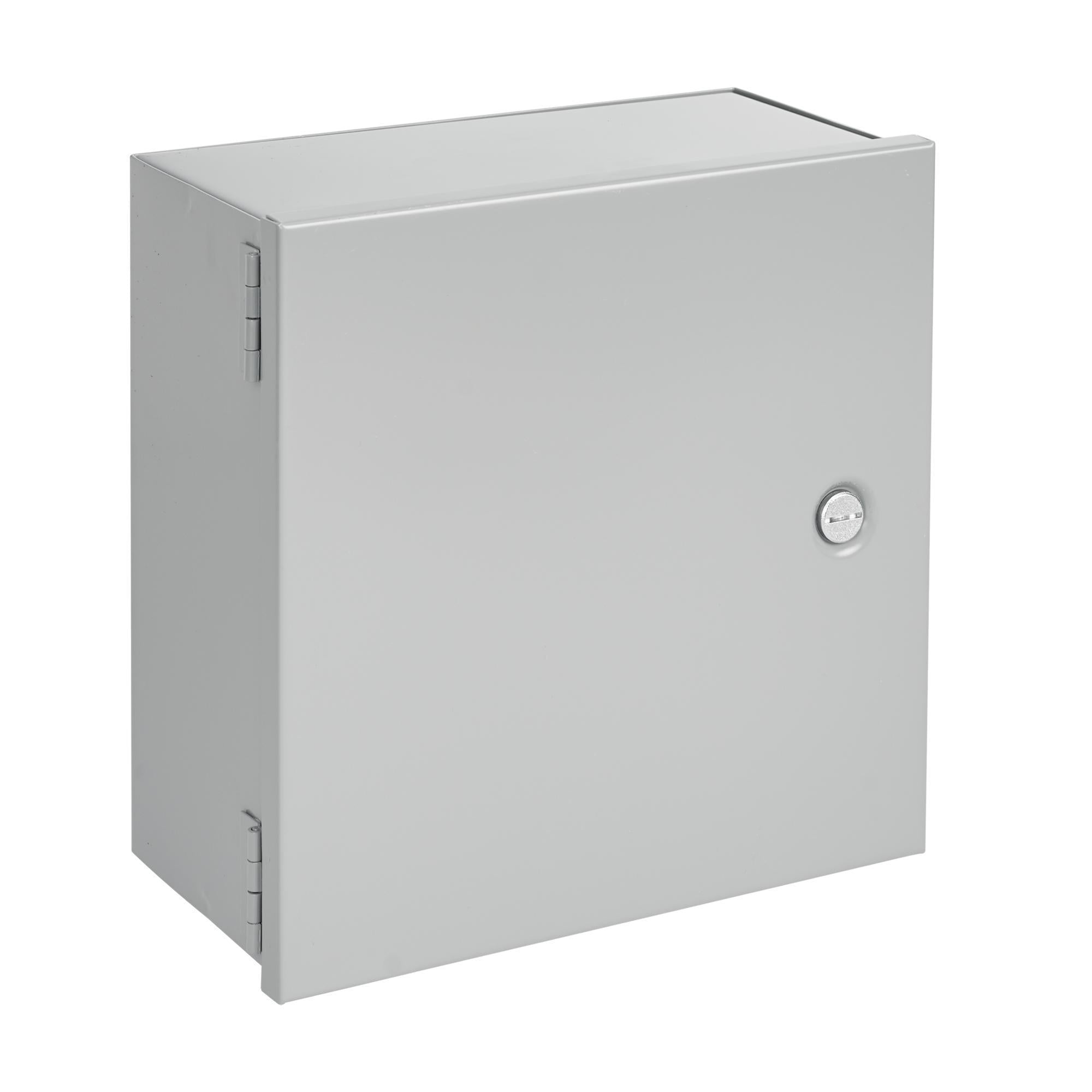

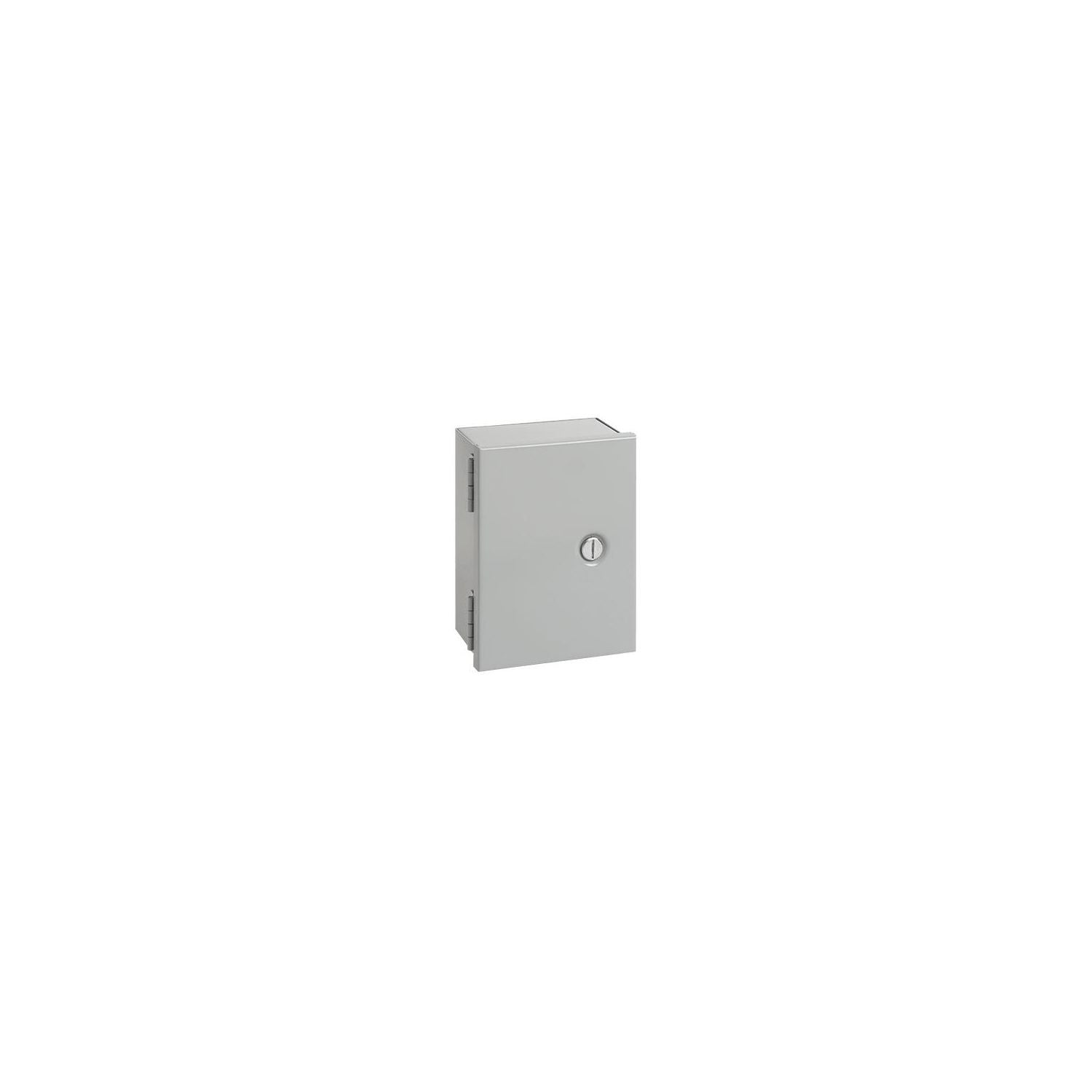

Nvent A8N84 Hoffman Small NEMA 1 Enclosure (8 x 8 x 4 in)

Product Description

The nVent A8N84 is a Hoffman A1SM small wall-mount enclosure measuring 8 in x 8 in x 4 in. It provides NEMA 1 / IP30 protection for basic indoor electrical applications and is constructed of steel with a polyester powder paint finish. The enclosure includes a butt-hinged cover with a slotted flush latch operated by a screwdriver and provisions for a 6-1/4 in W x 6-1/4 in H internal panel.

• Butt-hinged cover with slotted flush latch (screwdriver operated)
• Steel construction with polyester powder paint finish; 16 gauge
• Mounting holes on back of enclosure and weldnuts for optional internal panel

Product Highlights

Small NEMA 1 wall-mount steel enclosure, 8 x 8 x 4 in, accepts 6-1/4 x 6-1/4 in internal panel

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A8N84
• Country of Origin: Mexico

Technical Specifications

• Brand: nVent (Hoffman)
• Manufacturer Part Number: A8N84
• Series: A1SM
• Product Type: Small wall-mount enclosure
• Enclosure Type: Type 1
• NEMA Rating: NEMA 1
• IP Rating: IP30
• Material: Steel (mild steel)
• Gauge: 16 gauge
• Finish: Polyester powder paint (ANSI 61 gray)
• Exterior Dimensions (L x W x D): 8 in x 8 in x 4 in
• Actual Dimensions: 8.2 in x 8.2 in x 4.2 in
• Height: 8 in
• Width: 8 in
• Depth: 4 in
• Internal Panel Size: 6-1/4 in W x 6-1/4 in H
• Cover Type: Butt hinged
• Latch: Slotted flush latch (screwdriver operated)
• Hinges: Butt hinges
• Mounting Type: Wall mount; mounting holes on back
• Weldnuts for Panel: Yes
• Weight: 5 lb
• Color: Gray (ANSI 61)
• Country of Origin: Mexico
• Standards/Approvals: UL 50; UL 50E File No. E27567; cUL Listed per CSA C22.2 No. 40 File No. E27567; CSA File No. 42184; IEC 60529; RoHS Compliant
• UPC: 783510341800
• Article Number: 34180
