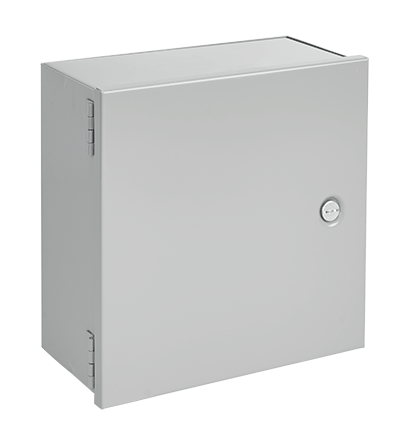

nVent A8N66 HOFFMAN Small Type 1 Panel Encl

Product Description

The nVent HOFFMAN A8N66 is a small type 1 panel enclosure designed for robust protection in various electrical applications. This steel enclosure measures eight inches in length, six inches in width, and six inches in depth. It provides a NEMA 1/IP30 rating, ensuring adequate performance in indoor environments. The butt hinged cover allows easy access while the flush slotted latch operates with a screwdriver for security.

• Constructed from durable steel with a polyester powder paint finish for longevity
• Designed for wall mounting with mounting holes included
• Meets standards for safety and reliable performance

Product Highlights

This enclosure is suitable for housing electrical and electronic equipment safely. Ideal for locations where minimal environmental exposure is expected, the A8N66 model fits well in many installations.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351014275

Technical Specifications

• Type: Small
• NEMA Rating: NEMA 1/IP30
• Dimension: 8 in L x 6 in W x 6 in D
• Lock: Slotted Flush Latch
• Cover Type: Butt Hinged
• Material: Steel
• Finish: Polyester Powder Painted
• Panel Size: 4-1/4 in W x 6-1/4 in H
• Series: A1SM
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 40, IEC 60529, UL 50
