nVent A866DL HOF Liftoff Hinge Cvr Box

Product Description

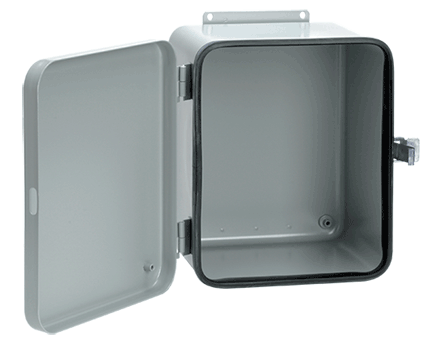

The nVent HOFFMAN A866DL Junction Box is designed for protecting electrical equipment from indoor contaminants. This contoured junction box features a hinged and removable cover, which allows for easy access. The product is built with steel, adhering to strict NEMA ratings for durability and safety.

• Constructed from sixteen-gauge steel for enhanced durability.
• Features a quick-release latch for easy access.
• Wall-mounted design provides flexibility in installations.

Product Highlights

The A866DL Junction Box is a robust solution for various electrical applications, ensuring safety and accessibility in installations.

Product Information

Standard Information

• Product Name: nVent HOFFMAN A866DL Junction Box
• Manufacturer: nVent

Technical Specifications

• Application: For protecting equipment from indoor contaminants
• Color: Gray
• Cover Type: Hinged/Removable
• Depth: 6 inches
• Finish: Polyester Powder Painted
• Height: 8 inches
• Lock: Quick-Release Latch
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Panel Size: 6.75 x 4.88 inches
• Series: A51
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E61997|CSA File No. 42184|IEC 60529|UL 508A File No. E61997
• Type: Contoured
• Width: 6 inches
