nVent A864PHC Hoffman Type 4X Poly Solid CVR QR/SC

Product Description

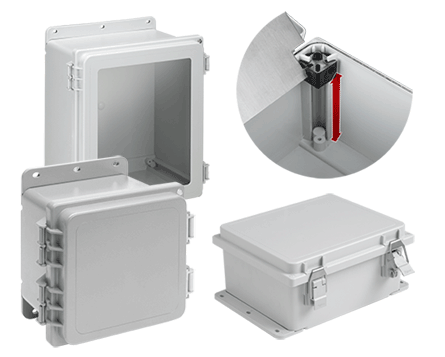

The nVent Hoffman PolyPro™ A864PHC is a lightweight enclosure designed for harsh environments. With a NEMA 4X/IP66 rating, this enclosure offers solid protection against various weather conditions and chemicals. Its dimensions are eight point twelve inches in length, six point twelve inches in width, and four point thirty-eight inches in depth.

• Durable polyester construction
• Snap-hinged cover for easy access
• Wall mountable with locking padlock feature

Product Highlights

This enclosure is suitable for applications where chemical resistance and protection from the elements are necessary.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351017072

Technical Specifications

• Type: Lightweight
• Application: For harsh chemicals, weather extremes, and corrosive environments
• Color: Light Gray
• Cover Type: Snap-Hinged
• Dimensions: 8.12 in L x 6.12 in W x 4.38 in D
• NEMA Rating: NEMA 4X/IP66
• Lock: Padlock
• Material: Polyester
• Mounting Type: Wall
• Panel Size: 4.88 in W x 6.75 in H
• Series: PCR
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, IEC 60529, RoHS Compliant, UL 508A
