nVent A864CHSCFG HOF NEMA 4X FIBERGLASS ENCL..

Product Description

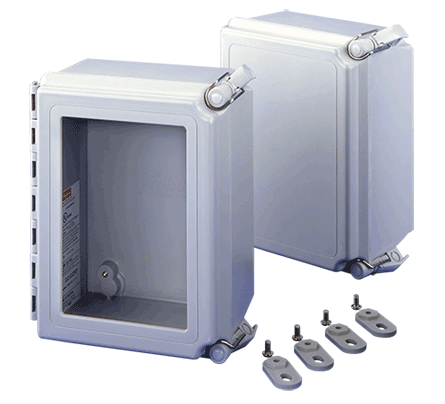

The nVent A864CHSCFG is a fiberglass enclosure designed for electrical applications. It features a NEMA 4X/IP66 rating, ensuring protection against dust and water. The enclosure measures eight inches in height, six inches in width, and four inches in depth.

• Fiberglass material offers durability in various environments.
• Includes a continuous hinged/screw cover for security.
• Wall-mounted design with padlock latch for safe access.

Product Highlights

This enclosure is suitable for outdoor use and provides a reliable solution for housing electrical components.

Product Information

Standard Information

• Manufacturer: nVent
• Master SKU: 7ac6b9e6-c75b-4f00-b368-95ad55ca7b3c

Technical Specifications

• MPN: A864CHSCFG
• Color: Light Gray
• Cover Type: Continuous Hinged/Screw
• Depth: 4 inches
• Height: 8 inches
• Lock: Padlock Latch
• Material: Fiberglass
• Mounting Type: Wall
• NEMA Rating: NEMA 4X/IP66
• Panel Size: 6.75 x 4.88 inches
• Series: A48
• Standards/Approvals: RoHS Compliant, cUL Listed, CSA C22.2 File No. 94, File No. E61997, UL 508A File No. E61997
• Width: 6 inches
