Nvent A808LP Hoffman junction box 8 in x 8 in x 4 in clamp lift-off cover

Product Description

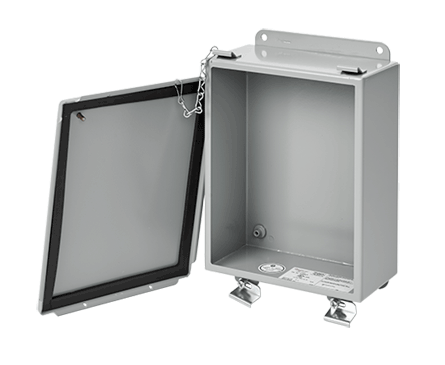

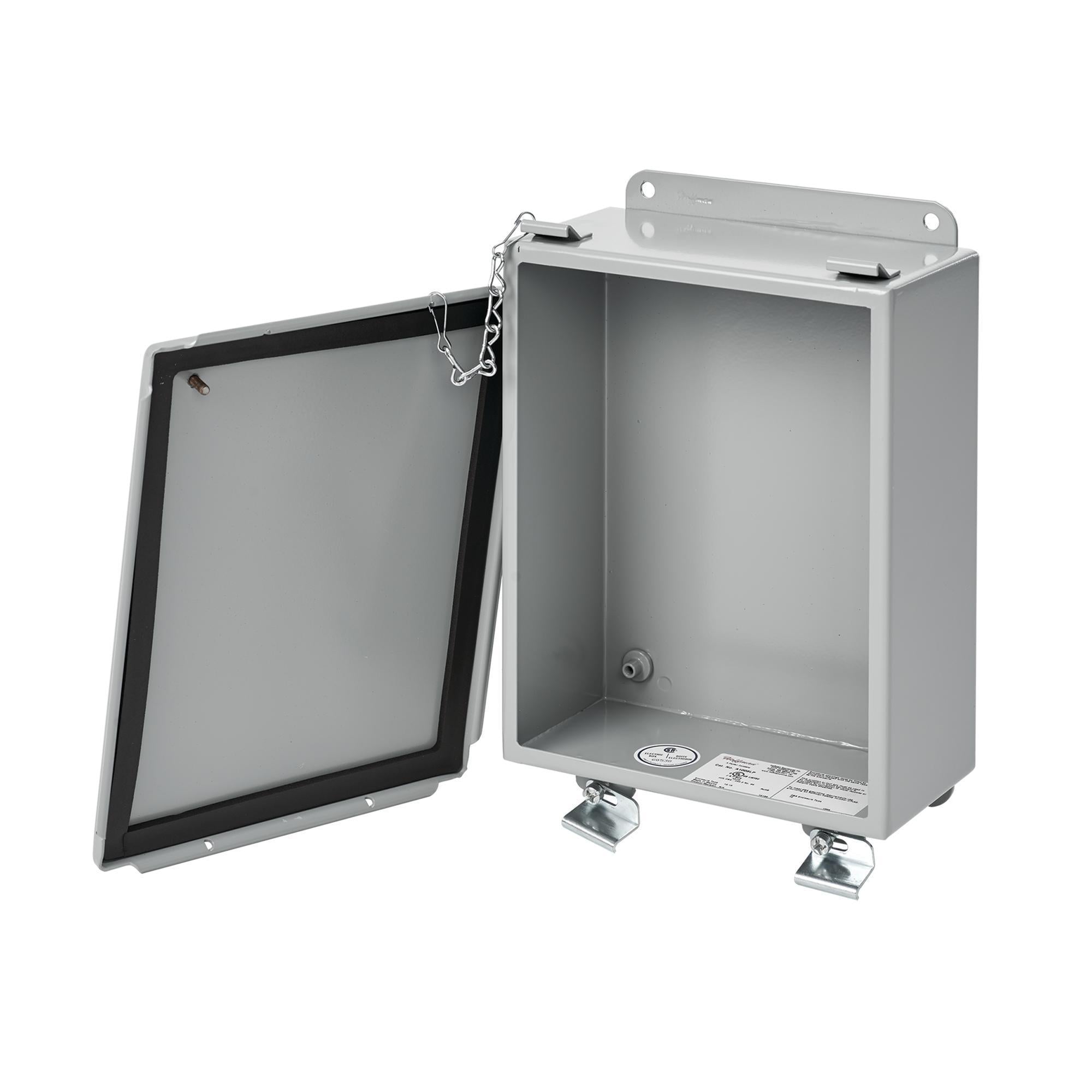

The Nvent A808LP is an 8 in x 8 in x 4 in Hoffman junction box with a clamp/lift-off cover designed to house controls and instrumentation in industrial environments. It is constructed of mild steel with a polyester powder coat finish, features a chain-secured lift-off clamp and oil-resistant gasket, provides a panel opening of 6.75 x 6.88 in, and is rated NEMA 12/13 and IP65 with multiple UL and cUL listings.

• Chain-secured lift-off clamp cover with screw-down clamps and oil-resistant gasket for protected access
• Mild steel construction with polyester powder coat, continuously welded and ground-smooth seams, and weldnuts for optional panels
• NEMA 12/13 and IP65 rated; meets UL 50/50E, UL 508A, and cUL CSA C22.2 No. 94 standards

Product Highlights

8 x 8 x 4 in mild steel enclosure; clamp/lift-off cover with chain; NEMA 12/13 and IP65; panel opening 6.75 x 6.88 in

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A808LP

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: A808LP
• Height: 8 in
• Width: 8 in
• Depth: 4 in
• Overall Dimensions: 9.50 x 8.94 in
• Panel Size: 6.75 x 6.88 in
• Material: Mild steel
• Finish: Polyester powder coat
• Thickness: 14 ga
• Cover Type: Clamp / lift-off
• Cover Features: Chain-secured lift-off clamp; screw-down clamps; bonding provision on cover
• Gasket: Oil-resistant gasket
• Mounting Type: External wall-mounting brackets; weldnuts for optional panels
• Mounting Pattern: 8.75 x 6.00 in
• Backplate Provisions: Studs provided for adding backplate (back panel not included)
• Seams: Continuously welded and ground smooth
• Weight: 14.8 lb
• NEMA Rating: NEMA 12, NEMA 13
• IP Rating: IP65
• Standards/Approvals: UL 50; UL 50E (Type 4/4X/12) File No. E27567; UL 508A; cUL Listed per CSA C22.2 No. 94 File No. E61997; IEC 60529
• Application: Housing controls and instrumentation; industrial environments
• Component: Steel enclosure
• Enclosure Door Type: Solid
• Enclosure Latch Type: Screw-down clamp latches
