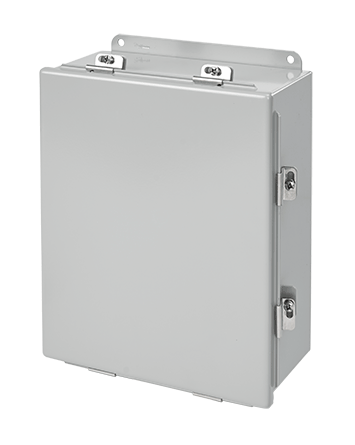

nVent A808CHNF Junction Box, 8 in H x 8 in W x 4 in D, NEMA 4/IP66 A808CHNF

Product Description

The nVent A808CHNF Junction Box is designed to offer secure environmental protection for electrical components. This junction box measures eight inches in height, eight inches in width, and four inches in depth. It features a continuous hinged and screw clamp cover that ensures a tight seal. With a NEMA 4/IP66 rating, it is suitable for both indoor and outdoor use.

• Constructed with mild steel and polyester powder-coated finish for durability
• Easy installation with external welded-on mounting brackets
• Oil-resistant gasket provides additional protection against environmental factors

Product Highlights

This junction box supports wall mounting and comes equipped with stainless steel screw-down clamps for added security. It is ideal for protecting sensitive electrical components in various applications.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: A808CHNF

Technical Specifications

• Application: For environmental protection and security in indoor or outdoor applications
• Color: Gray
• Cover Type: Continuous Hinged/Screw Clamp
• Depth: 4 inches
• Finish: Polyester Powder Painted
• Height: 8 inches
• Material: Mild Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Panel Size: 6.75 x 6.88 inches
• Series: A51NF
• Standards/Approvals: PROP65 warning for exposure to certain chemicals
• Width: 8 inches
