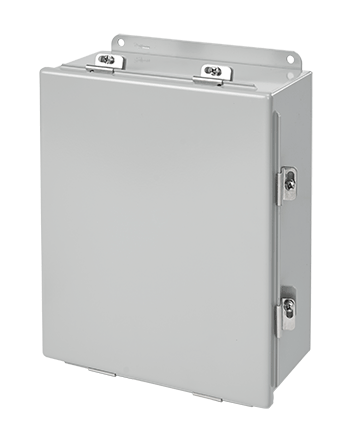

nVent A806CHNF HOF NEMA 4 Hinged Box

Product Description

The nVent A806CHNF is a Hoffman junction box designed for environmental protection in various applications. This model features a NEMA 4/IP66 rating, ensuring resistance to dust and water. The continuous hinge design with a screw clamp cover provides secure access and reliable performance. The dimensions are eight inches in height, six inches in width, and three and a half inches in depth.

• NEMA 4/IP66 rated for superior protection
• Constructed with steel and polyester powder painted finish
• Wall mounting with easy installation options

Product Highlights

This junction box is suitable for indoor and outdoor use, offering essential security for electrical components.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351055720

Technical Specifications

• Application: Used to provide environmental protection and security in indoor or outdoor applications
• Color: Gray
• Cover Type: Continuous Hinged/Screw Clamp
• Depth: 3-1/2 in
• Finish: Polyester Powder Painted
• Height: 8 in
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Panel Size: 6.75 x 4.88 in
• Series: A51NF
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E27567, CSA File No. 42184, IEC 60529, UL 50/50E Listed File No. E27567
• Width: 6 in
