Nvent A7230SOF19 Swing-out Mounting Frame

Product Description

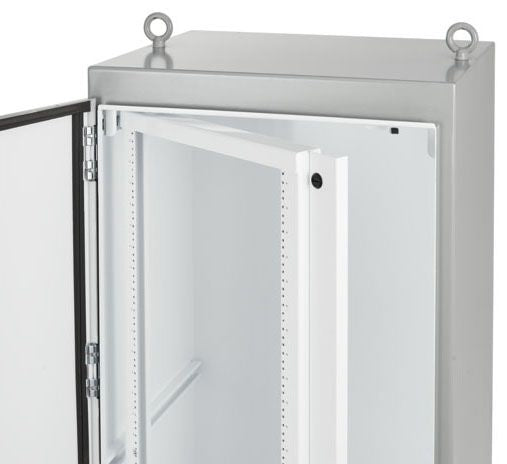

The NVENT A7230SOF19 is a swing-out mounting frame designed to provide secure, serviceable access to electrical and control components housed in industrial enclosures. The swing-out design allows panels, subplates, or component assemblies to pivot outward from the enclosure, giving technicians clear front and rear access without removing the assembly entirely. This type of frame is standard in panel-building, industrial controls, and electrical distribution applications where serviceability and cable management are critical. It is typically installed by licensed electricians or panel builders during enclosure assembly or retrofit projects.

This mounting frame is suited for use in industrial, commercial, and utility enclosure applications where swing-out access to internal components is required. It is commonly specified in control panel builds, motor control centers, and electrical distribution enclosures. The frame allows mounted equipment to remain wired while swinging clear, reducing service time during inspection and maintenance.

Key Features

• Swing-out design allows full access to front and rear of mounted components without full removal
• Supports secure mounting of subplates, DIN rail assemblies, or control components
• Reduces panel service time by keeping wired assemblies intact during access
• Weighs 62 pounds, indicating a heavy-duty frame construction suitable for substantial component loads

Compatibility

Designed as an OEM-style swing-out mounting frame for use with compatible industrial electrical enclosures requiring swing-out subplate or panel access.

Installation Notes

Installation should be performed by a licensed electrician or qualified panel builder in accordance with applicable NEC requirements. De-energize the enclosure and follow lockout/tagout procedures before installing or servicing the frame assembly. Verify enclosure mounting dimensions and hinge clearance before final installation. Do not exceed the rated component load capacity of the frame.

Technical Specifications

• Weight: 62 pounds
• UPC: 78351074400

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A7230SOF19
