nVent A6R64HCR HOF Enclosure Type 3R HNGD CVR

Product Description

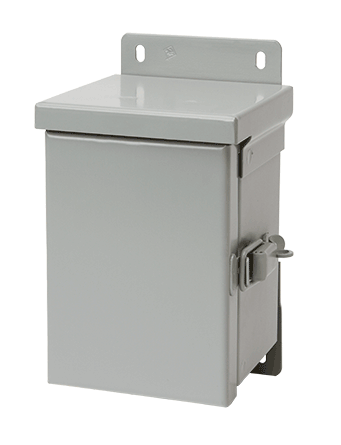

The nVent HOFFMAN A6R64HCR is a small enclosure designed for wall mounting. Its dimensions are six inches in length, six inches in width, and four inches in depth. It meets NEMA 3R standards for protection against rain, sleet, snow, or dripping water.

• Includes a hinged cover with a locking mechanism.
• Constructed from galvanized steel for strength and durability.
• Features multiple knockouts for cable entry.

Product Highlights

This enclosure is suitable for various applications requiring reliable protection for electrical components.

Product Information

Standard Information

• Manufacturer: nVent
• Model Number: A6R64HCR

Technical Specifications

• Dimensions: 6 in Length x 6 in Width x 4 in Depth
• NEMA Rating: NEMA 3R
• Material: Steel
• Finish: Galvanized/Powder Coated
• Lock Type: Draw Pull Catch Padlock
• Mounting Type: Wall
• Panel Size: 4-1/4 in W x 4-1/4 in H
• Cable Entry Size: (2) 1/2 to 3/4 in, (1) 3/4 to 1 in Knockout Bottom
• Series: A3SM
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E27567 | IEC 60529 | UL 50 | 50E Listed File No. E27567
