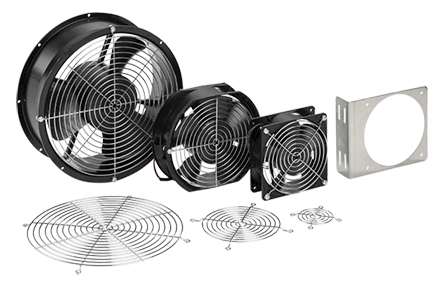

nVent A6AXFN HOF 6 AXIAL FAN 115 VAC 200/240 cfm

Product Description

The nVent A6AXFN is a compact axial fan designed for efficient airflow and reliable cooling in limited space enclosures. Operating at 115 VAC, it provides airflow rates of 200 to 240 cfm. The fan is constructed with a durable polycarbonate housing and features a thermally protected AC motor. The unit is ideal for applications where quiet operation and effective thermal management are crucial.

• Designed for installation on various enclosure surfaces.
• Includes fan power cord, bracket, finger guard, and temperature control switch.
• Thermally protected motors help prevent premature failure.

Product Highlights

This fan features dynamically balanced impellers and permanently lubricated ball bearings for longevity. It operates at sound levels of 50 to 56 dBA.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: A6AXFN

Technical Specifications

• Air Flow Rate: 200/240 cfm
• Power Rating: 36/32 W
• Amperage Rating: 0.36/0.45 A
• Speed: 2670/3200 rpm
• Sound Level: 50/56 dBA
• Voltage Rating: 115 VAC
• Dimensions: 6.77 in Dia x 1.5 in D
• Housing Material: Polycarbonate
• Standards/Approvals: CSA Certified, RoHS Compliant, UL Listed
