Nvent A664GSC A90GS enclosure 6 in x 6 in x 4 in

Product Description

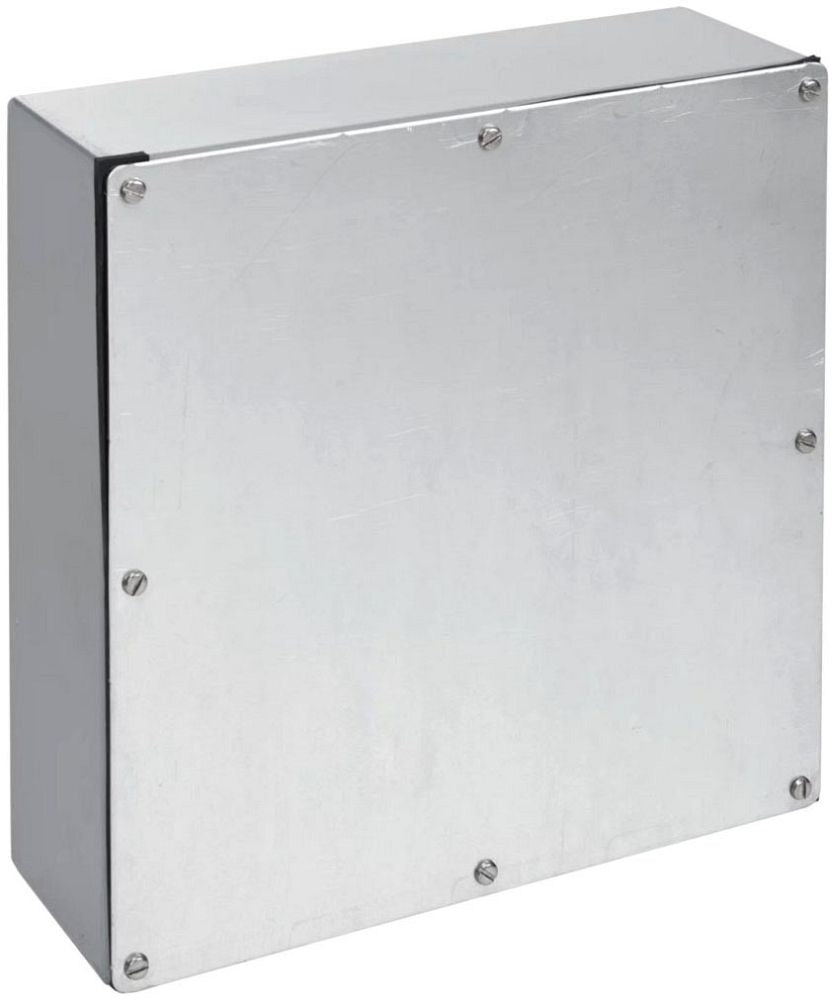

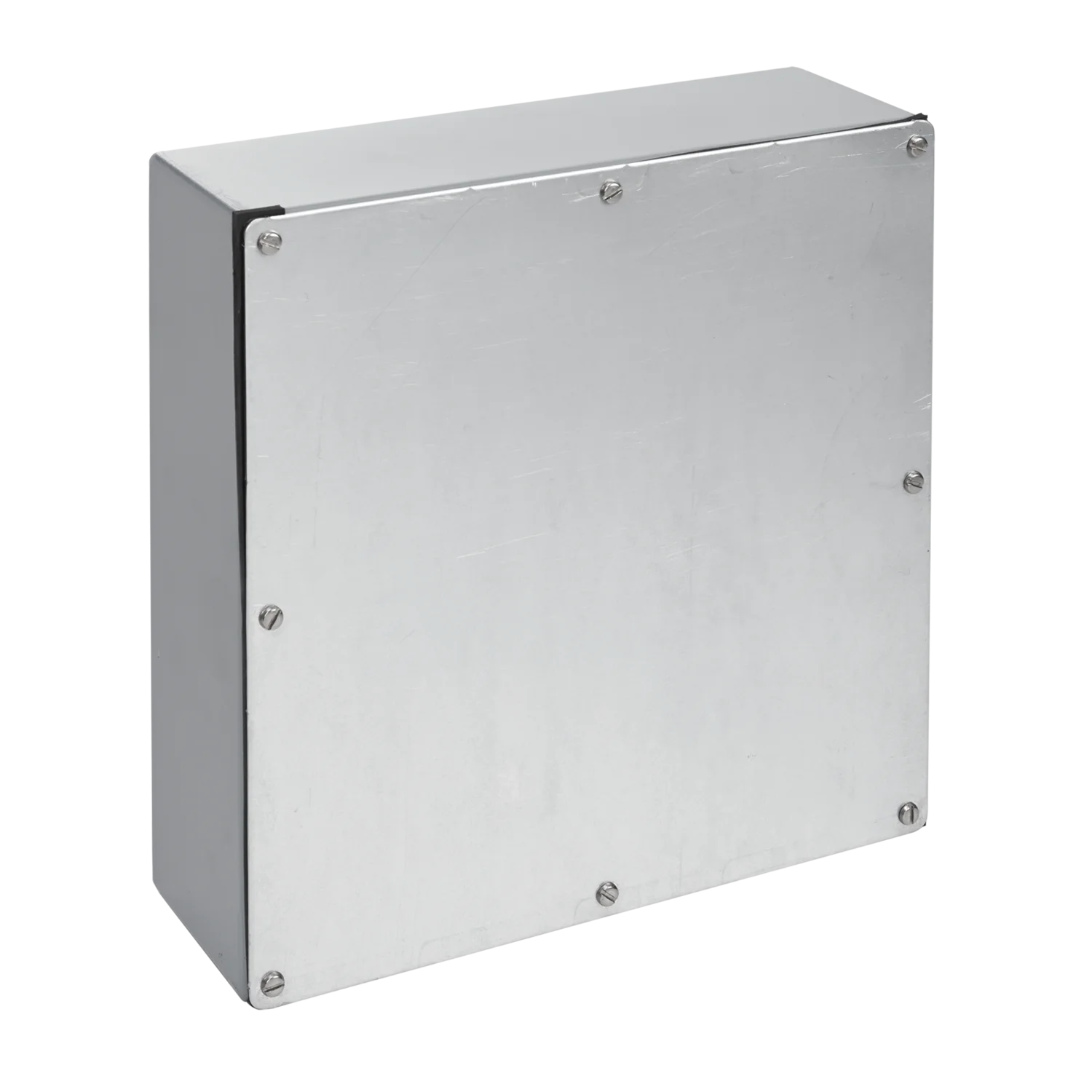

nVent A664GSC is a steel, gasketed screw-cover enclosure sized 6 in x 6 in x 4 in and rated NEMA 3 for protection against windblown dust and rain. The enclosure features a galvanized finish, captivated stainless steel cover screws that thread into sealed wells, an oil-resistant gasket with adhesive, continuously welded seams ground smooth, and an internal grounding stud. It is intended for use as a wiring, junction, pull or terminal box.

• 6 in x 6 in x 4 in galvanized steel enclosure with gasketed screw-on cover
• Captivated stainless steel cover screws (4), continuously welded seams, no holes or knockouts
• NEMA 3 rating with IEC/UL/CSA approvals (UL 508A, cUL per CSA C22.2) and internal grounding stud

Product Highlights

Gasketed screw-cover steel enclosure, 6 x 6 x 4 in, NEMA 3, galvanized finish, welded seams, captive stainless cover screws

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A664GSC
• Country of Origin: United States

Technical Specifications

• Brand: nVent
• Manufacturer Part Number: A664GSC
• Series: A90GS
• Dimensions (H x W x D): 6 in x 6 in x 4 in
• Material: Steel (mild steel)
• Finish: Galvanized
• Body Gauge: 14 gauge
• Cover Gauge: 12 gauge
• Cover Type: Gasketed screw cover
• Cover Screw Quantity: 4
• Cover Screw Material: Stainless steel (captivated)
• Gasket: Oil-resistant gasket with adhesive
• Seam Construction: Continuously welded and ground smooth
• Mounting Type: Surface
• NEMA Rating: NEMA 3
• Certifications: UL 508A; cUL Listed per CSA C22.2; CSA File No. 42184; IEC 60529; RoHS Compliant
• Grounding Stud: Internal grounding stud on inside back of box
• Body/Material Grade: G90 (cover grade)
• Weight: 4 lb
• Country of Origin: United States
• Catalog Number: A664GSC
• Article Number: 56090
• Bulletin Number: A90GS
• UPC: 783510560904
