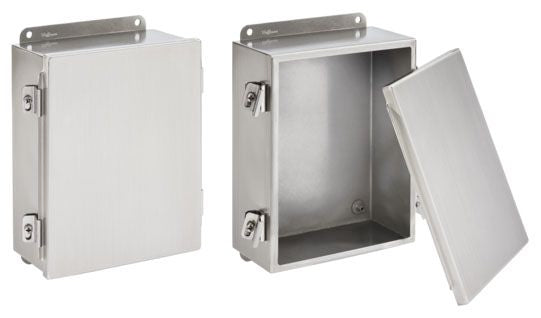

Nvent A606NFSS Nema 4X Stainless Steel Jic Box

Product Description

The NVENT A606NFSS is a NEMA 4X rated stainless steel JIC enclosure box designed to protect electrical controls, instruments, and wiring in demanding industrial and commercial environments. NEMA 4X enclosures provide protection against corrosion, windblown dust, rain, splashing water, and hosedown conditions, making them a go-to choice where washdown exposure or corrosive atmospheres are a factor. The stainless steel construction adds durability in environments where carbon steel or painted enclosures would degrade prematurely. This enclosure is typically specified and installed by licensed electricians and industrial controls technicians.

The A606NFSS is well suited for use in food processing facilities, wastewater treatment plants, chemical handling areas, marine environments, and other locations requiring both corrosion resistance and a high ingress protection rating. It follows JIC panel layout standards, making it compatible with conventional DIN rail and terminal block installations commonly used in industrial control panel builds. Electricians and panel builders working to NFPA 79 or NEC guidelines will find this enclosure consistent with standard practice for industrial control enclosures.

Key Features

• NEMA 4X rating provides protection against corrosion, hosedown, and windblown debris
• Stainless steel construction resists corrosion in washdown and chemically aggressive environments
• JIC-style layout supports standard DIN rail and terminal block panel builds
• Suitable for indoor and outdoor installations in harsh or wet locations
• Enclosure weight of 33.52 pounds indicates robust wall thickness and hardware

Compatibility

Designed as an OEM-style NEMA 4X stainless steel JIC enclosure for industrial and commercial electrical control panel applications requiring corrosion-resistant housing.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Disconnect and lock out all power before making any wiring connections inside the enclosure. Verify that all conduit entries are properly sealed with appropriate fittings rated for NEMA 4X service to maintain the enclosure integrity rating. Mounting hardware should be appropriate for the wall or surface material to support the enclosure weight of 33.52 pounds plus internal components.

Technical Specifications

• NEMA Rating: 4X
• Material: Stainless Steel
• Enclosure Type: JIC Box
• Weight: 33.52 pounds
• UPC: 78351056920

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A606NFSS
