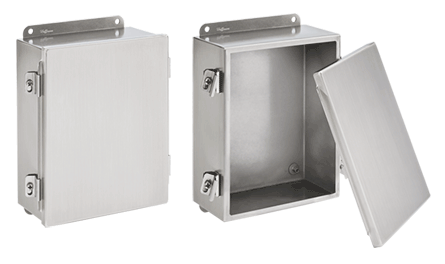

nVent A606NFSS HOF SS CLP CVR JIC BOX

Product Description

The nVent A606NFSS is a junction box designed for effective use in corrosive or outdoor environments. This model has dimensions of six inches in height and width, and four inches in depth. It is made from 304 stainless steel and meets NEMA 4X/IP66 ratings.

• NEMA 4X/IP66 rated for outdoor use
• Screw clamp and solid cover ensure a reliable sealing
• Compact size suitable for tight spaces

Product Highlights

This junction box features robust construction with welded seams for enhanced durability in challenging conditions.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: A606NFSS

Technical Specifications

• Application: Used in either corrosive or outdoor applications
• Cover Type: Screw Clamp/Solid
• Depth: 4 inches
• Finish: #4 Smooth Brushed
• Height: 6 inches
• Material: 304 Stainless Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4X/IP66
• Panel Size: 4.88 x 4.88 inches
• Series: A51S
• Standards/Approvals: RoHS Compliant, cUL Listed, IEC 60529, UL 50
• Width: 6 inches
