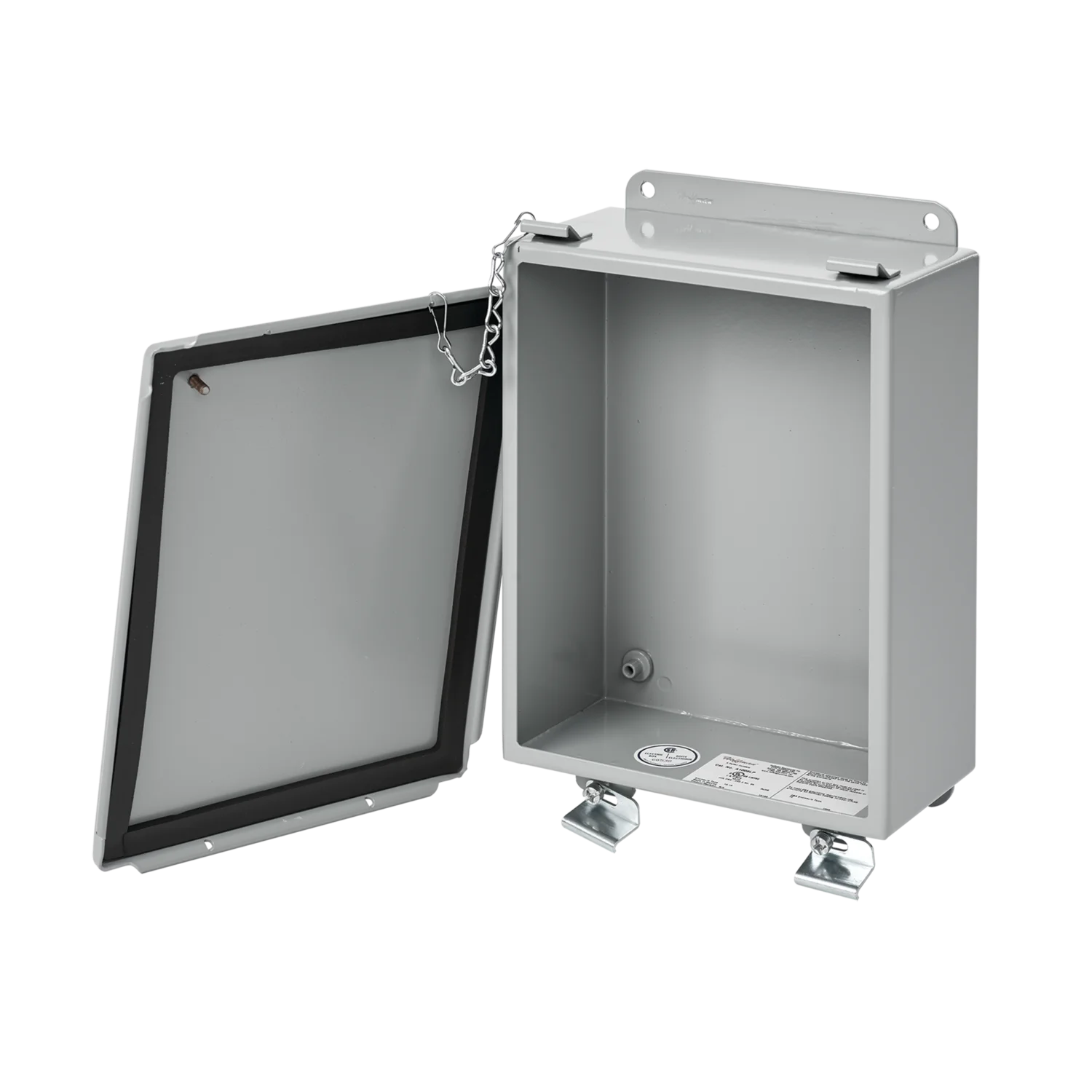

Nvent A606LP Lift-Off Clamp Cover Enclosure 6.00x6.00x4.00

Product Description

The NVENT A606LP lift-off clamp cover enclosure meets basic functionality requirements for housing controls and instrumentation. Seams are continuously welded and ground smooth. It features screw-down clamps, a lift-off cover, and a bonding provision on the cover. A chain holds cover to box when cover is removed.

• Seams continuously welded and ground smooth
• Screw-down clamps
• Lift-off cover

Product Highlights

This mild steel enclosure has external wall-mounting brackets and an oil-resistant gasket. Weldnuts are provided for mounting optional panels and terminal block kits.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A606LP

Technical Specifications

• Article Number: 54050
• Height: 6in
• Width: 6in
• Depth: 4 Inch
• Material: Mild Steel
• Finish: Powder Coated
• Color Code: ANSI 61
• Thickness: 16ga
• Enclosure Type: Electrical / Industrial
• Enclosure Material: Steel
• IP Rating: IP65
• Body Color: Gray
• NEMA Rating: NEMA 12, 13
• Manufacturer: nVent
• Type: Chain-Secured, Lift-Off Clamp Cover, Type 12
• Cover Type: Chain-Secured Lift-Off Clamp Cover
• Mounting Type: Wall
• External Height - Metric: 152.4mm
• External Width - Metric: 152mm
• External Depth - Metric: 102mm
• External Height - Imperial: 6"
• External Width - Imperial: 6"
• External Depth - Imperial: 4"
