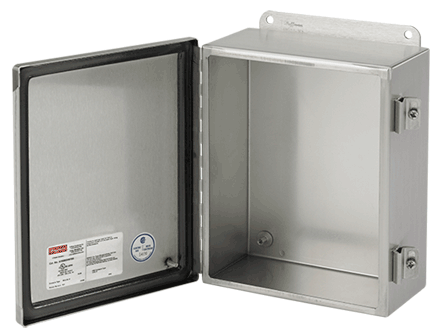

nVent A606CHNFSS HOF NEMA 4X Stainless Steel Enclosure

Product Description

The nVent A606CHNFSS is a Hoffman Junction Box designed for both indoor and outdoor applications. This model measures six inches in height, six inches in width, and four inches in depth. With a NEMA 4X/IP66 rating, it provides protection against corrosive environments.

• Manufactured from 304 stainless steel to ensure durability.
• Features a continuous hinged/screw clamp cover for secure closure.
• Wall mounting capability with a 4.88 x 4.88 inch panel size.

Product Highlights

This enclosure combines a rugged build with excellent sealing properties, making it ideal for various applications. Its continuous hinge and seamless foam-in-place gasket offer reliable protection for electrical components.

Product Information

Standard Information

• Application: Indoor and Outdoor Applications
• Color: Gray

Technical Specifications

• Cover Type: Continuous Hinged/Screw Clamp
• Depth: 4 inches
• Finish: #4 Smooth Brushed
• Height: 6 inches
• Manufacturer Part Number: A606CHNFSS
• Material: 304 Stainless Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4X/IP66
• Panel Size: 4.88 x 4.88 inches
• Series: A51S
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E27567, CSA File No. 42184, IEC 60529, UL 50/50E Listed File No. E27567
• Width: 6 inches
