nVent A604816LP HOF NEMA12 2DOOR ENCL.

Product Description

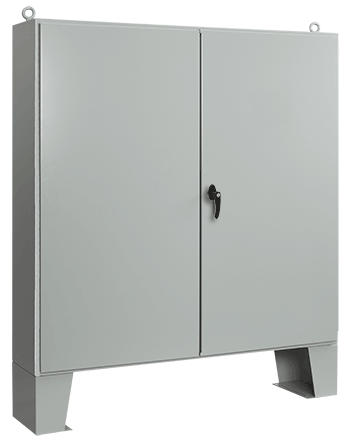

nVent HOFFMAN A604816LP is a two-door enclosure designed for electrical applications. This series A12L enclosure features a length of sixty point six inches, a width of forty-eight point six inches, and a depth of sixteen point six inches. It meets NEMA 12/IP55 ratings, ensuring protection against dust and water.

• Floor mounted, steel construction
• Concealed hinged cover for easy access
• Three-point latch with keyed handle for security

Product Highlights

The enclosure offers a gasketed design to protect internal components from the elements and ease of access for maintenance.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351026550

Technical Specifications

• Application: For enclosures with gasketed, overlapping doors
• Color: White
• Cover Type: Concealed Hinged
• Depth: 16.06 inches
• Finish: Polyester Powder Painted
• Length: 60.06 inches
• Lock: 3-Point Latch/Keyed Handle
• Material: Steel
• Mounting Type: Floor
• NEMA Rating: NEMA 12/IP55
• Panel Size: 44 inches W x 56 inches H
• Series: A12L
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E61997 | CSA File No. 42186 | IEC 60529 | UL 508A File No. E61997
• Type: 2-Door
• Width: 48.06 inches
