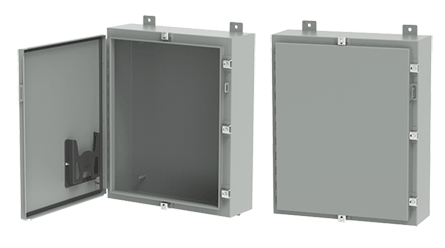

nVent A48H36BLP A4 Series 1-Door Enclosure 48 in x 36 in x 8 in NEMA 4/IP66

Product Description

The nVent HOFFMAN A48H36BLP is a single-door enclosure designed for indoor and outdoor applications. It provides durable protection for electrical equipment with a NEMA 4/IP66 rating. The enclosure measures forty-eight inches in length, thirty-six inches in width, and eight inches in depth.

• Seamless foam in place gasket ensures a tight seal.
• Heavy-gauge stainless steel construction for added strength.
• Clamp/continuous hinged cover allows for easy access.

Product Highlights

This single-door enclosure meets industry standards and is suitable for a variety of environments.

Product Information

Standard Information

• Manufacturer: nVent
• Product Type: 1-Door Enclosure

Technical Specifications

• Application: Indoor/Outdoor Applications
• Color: Gray
• Cover Type: Clamp/Continuous Hinged
• Depth: 8 in
• Finish: Polyester Powder Painted
• Length: 48 in
• Lock: Hasp and Staple/Padlock
• Manufacturer Part Number: A48H36BLP
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Panel Size: 33 in W x 45 in H
• Series: A4 Series
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94|CSA File No. 42186|IEC 60529|RoHS Compliant|UL 508A File No. E61997
• Type: 1-Door
• Width: 36 in
