Nvent A4436RT Wiring Trough 4 x 4 x 36 in

Product Description

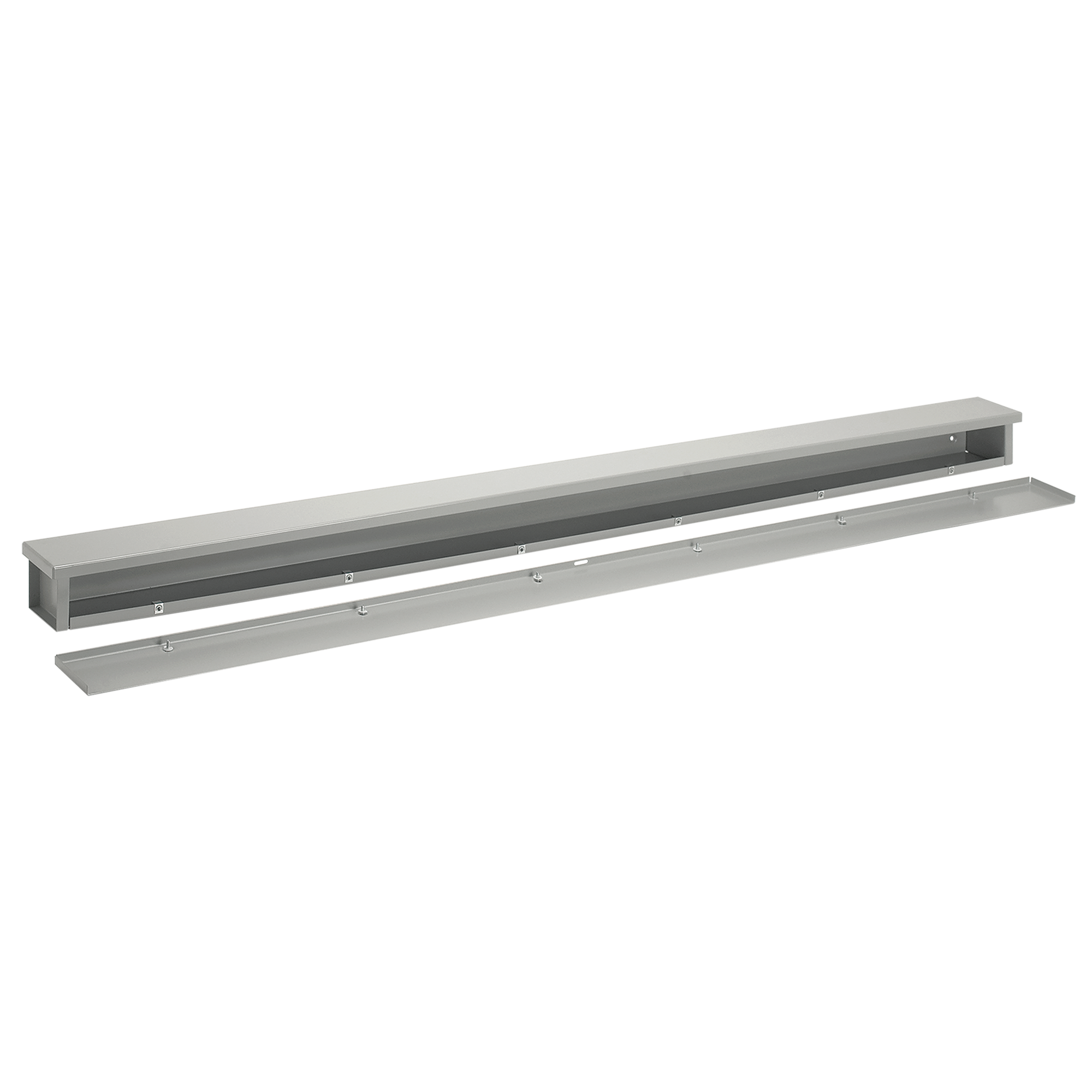

Nvent A4436RT is a steel wiring trough (Series F40PT) designed to protect wire and cable distribution, junctions, and terminations in outdoor or moisture-exposed environments. The 4 in H x 4 in W x 36 in L trough features a slip-on removable cover, drip-shield top, seam-free sides, embossed rear mounting holes, and provision for padlocking. Constructed of plated mild steel with an ANSI 61 polyester powder paint finish and rated NEMA 3R with UL 870 and cUL approvals.

• Slip-on removable cover with drip-shield top and seam-free sides/front/back
• Constructed of 16 or 14 gauge plated mild steel with ANSI 61 polyester powder paint/galvanized finish
• Raintight NEMA 3R rating; UL 870 and cUL CSA C22.2 No. 26 listed; IEC 60529 (IP32)

Product Highlights

4 x 4 x 36 in steel wiring trough, slip-on cover, drip-shield design, embossed mounting holes, NEMA 3R (UL 870 listed)

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A4436RT

Technical Specifications

• Manufacturer: nVent
• Brand: Nvent
• Manufacturer Part Number: A4436RT
• Series: F40PT
• Type: Wiring trough
• Dimensions: 4 in H x 4 in W x 36 in L
• Height: 4 in
• Width: 4 in
• Depth: 36 in
• Material: Plated mild steel
• Thickness: 16 or 14 gauge plated steel
• Finish: ANSI 61 polyester powder paint (galvanized/plated)
• Cover Type: Slip-On Removable
• NEMA Rating: NEMA 3R
• IP Rating: IP32
• Standards/Approvals: UL 870 File No. E27524; cUL File No. E27524/EEMAC; CSA C22.2 File No. 26; IEC 60529; EU Certified
• Application: Protecting wire and cable distribution, junctions and terminations in outdoor or moisture-exposed environments
• Features: Drip-shield top; Seam-free sides, front and back; Embossed mounting holes on back; Provision for padlocking; No gasketing or knockouts
• Bulletin Number: F40PT
• Catalog / Article Number: A4436RT / 38220
• Weight: 13.6 lb
• UPC/GTIN: 783510382209
