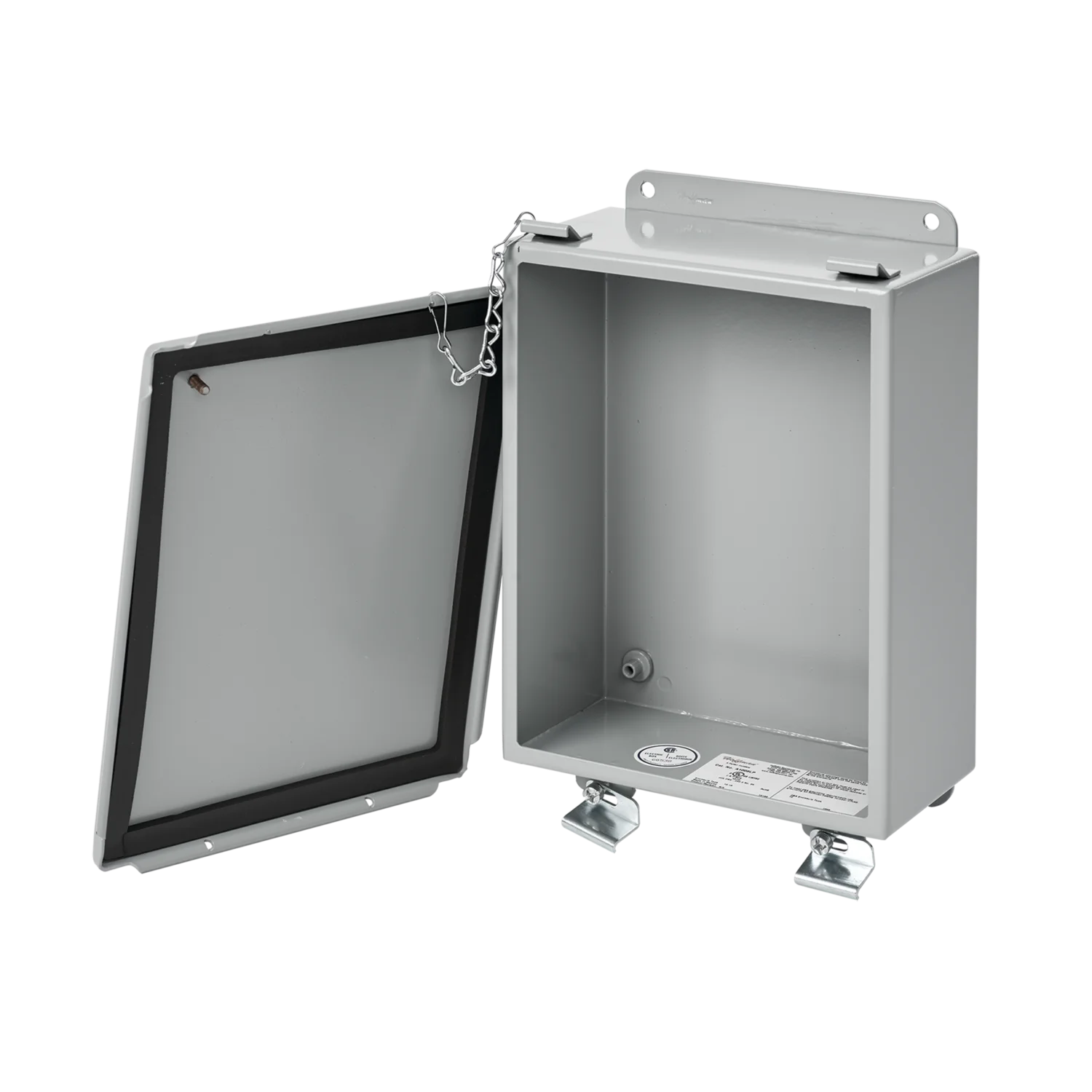

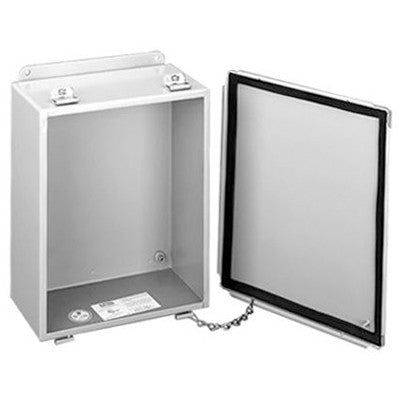

Nvent A404LP Type 12 Enclosure Steel Lift-Off Clamp Cover (4 x 3 x 4 in.)

Product Description

Nvent A404LP is a steel lift-off clamp cover enclosure designed for Type 12 and Type 13 applications. The compact junction box measures 4 in high x 4 in wide x 3 in deep and provides a chain-secured lift-off/screw clamp cover, oil-resistant gasket, and bonding provision to protect controls and instrumentation from dust, dirt, and dripping non-corrosive liquids.

• Type 12 and Type 13 NEMA ratings with IP65 listed protection for indoor industrial environments
• Steel construction with lift-off/screw clamp cover, chain retention, oil-resistant gasket and bonding provision
• Wall-mountable with weldnuts for optional panels/terminal block kits and external welded-on mounting brackets

Product Highlights

Steel Type 12/13 lift-off clamp cover enclosure, 4 x 3 x 4 in., chain-secured cover, oil-resistant gasket, weldnuts and external mounting brackets

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A404LP
• Country of Origin: Mexico

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: A404LP
• Material: Steel
• Finish: Polyester powder painted
• Height: 4 in
• Width: 4 in
• Depth: 3 in
• Overall Dimensions: Approximately 5.50 x 4.57 x 3.00 in (catalog/reference external dims)
• Weight: 1.9 lb
• Gauge / Thickness: 16 ga
• Mounting Type: Wall
• Cover Type: Lift-off / Screw clamp (chain-secured)
• Latch / Clamps: External screw-down clamps
• Gasket: Oil-resistant gasket
• Bonding Provision: Bonding provision on cover
• Weldnuts: Provided for mounting optional panels and terminal block kits
• External Mounting Brackets: Welded-on external brackets
• NEMA Rating: Type 12; Type 13
• Ingress Protection (IP) Rating: IP65
• Standards / Certifications: UL 50 / 50E Listed; UL 508A Listed; cUL Listed per CSA C22.2 No. 94; CSA File No. 42184; IEC 60529
• UPC: 783510540104
• Country of Origin: Mexico
• Application: Housing controls and instrumentation; junction box
