nVent A36SA3208LPPL HOF TYPE 12 SA DISC. ENC. WITH HANDLE

Product Description

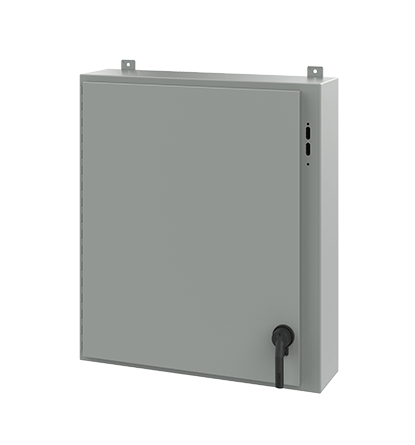

The nVent HOFFMAN A36SA3208LPPL is a preferred cutout disconnect enclosure. It measures thirty-six inches in length, thirty-one point thirty-eight inches in width, and eight inches in depth. This enclosure is designed for NEMA twelve and thirteen applications. It features a continuous hinged removable cover and is suitable for wall mounting.

• Installation instructions included
• Constructed from fourteen gauge steel
• Removable door with continuous hinge

Product Highlights

The nVent HOFFMAN disconnect enclosure is ideal for housing major brand disconnect switches and circuit breakers. This model includes an external welded on mounting bracket for easy installation and is designed for secure electrical connections.

Product Information

Standard Information

• Brand: nVent
• MPN: A36SA3208LPPL

Technical Specifications

• Application: Arc Flash Safety, Controls and Drives, Power Distribution
• Color: Gray
• Cover Type: Continuous Hinged/Removable
• Depth: 8 in
• Finish: Polyester Powder Coated
• Length: 36 in
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 12/13
• Panel Size: 27 in W x 33 in H
• Series: A25
• Standards/Approvals: BAA Compliant, CSA File No. 42186, cUL Listed per CSA C22.2 File No. 94 File No. E61997, UL 508A File No. E61997
• Width: 31.38 in
