nVent A36H24BLP HOF 8-in Deep NEMA4 Enclosure

Product Description

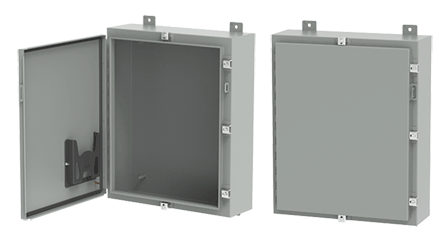

The nVent HOFFMAN A36H24BLP is a one-door enclosure designed for durability and security. With dimensions of thirty-six inches in length, twenty-four inches in width, and eight inches in depth, it meets NEMA 4/IP66 standards for indoor and outdoor applications. The enclosure is made from steel and features a polyester powder-painted finish for corrosion resistance.

• Features a continuous hinged door with clamps for secure sealing.
• External mounting brackets simplify installation.
• Includes a hasp and staple for padlocking security.

Product Highlights

This enclosure is ideal for protecting electrical components in various environments. Its robust design and secure locking mechanism ensure that equipment remains safe and operational.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: A36H24BLP

Technical Specifications

• Application: Indoor/Outdoor Applications
• Color: Gray
• Cover Type: Clamp/Continuous Hinged
• Depth: 8 in
• Finish: Polyester Powder Painted
• Length: 36 in
• Lock: Hasp and Staple/Padlock
• Manufacturer Part Number: A36H24BLP
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Panel Size: 21 in W x 33 in H
• Series: A4 Series
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E61997|CSA File No. 42186|IEC 60529|RoHS Compliant|UL 508A File No. E61997
• Type: 1-Door
• Width: 24 in
