Nvent A363612LP Hof 36x36x12 Enclosure (36 x 36 x 12)

Product Description

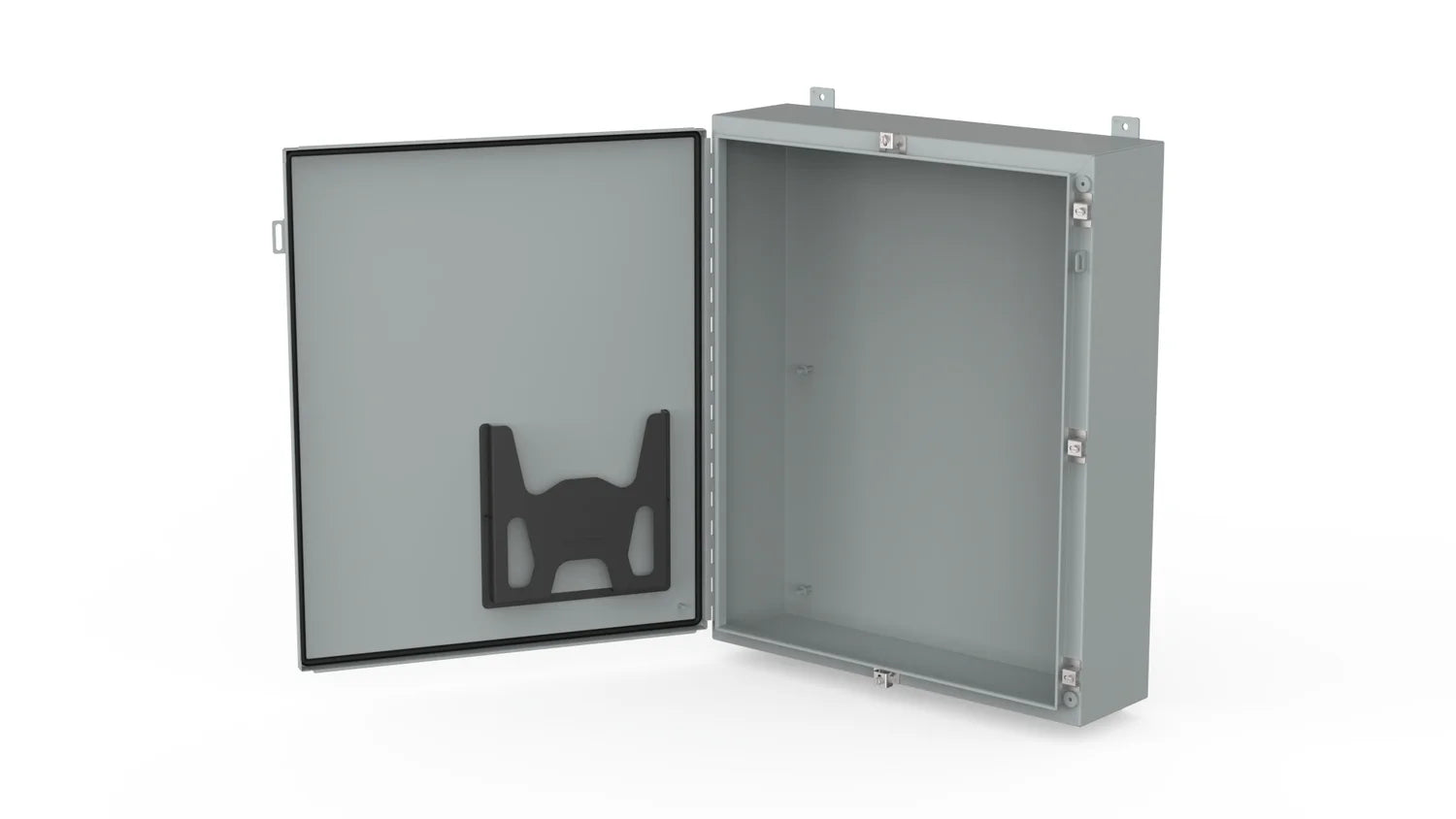

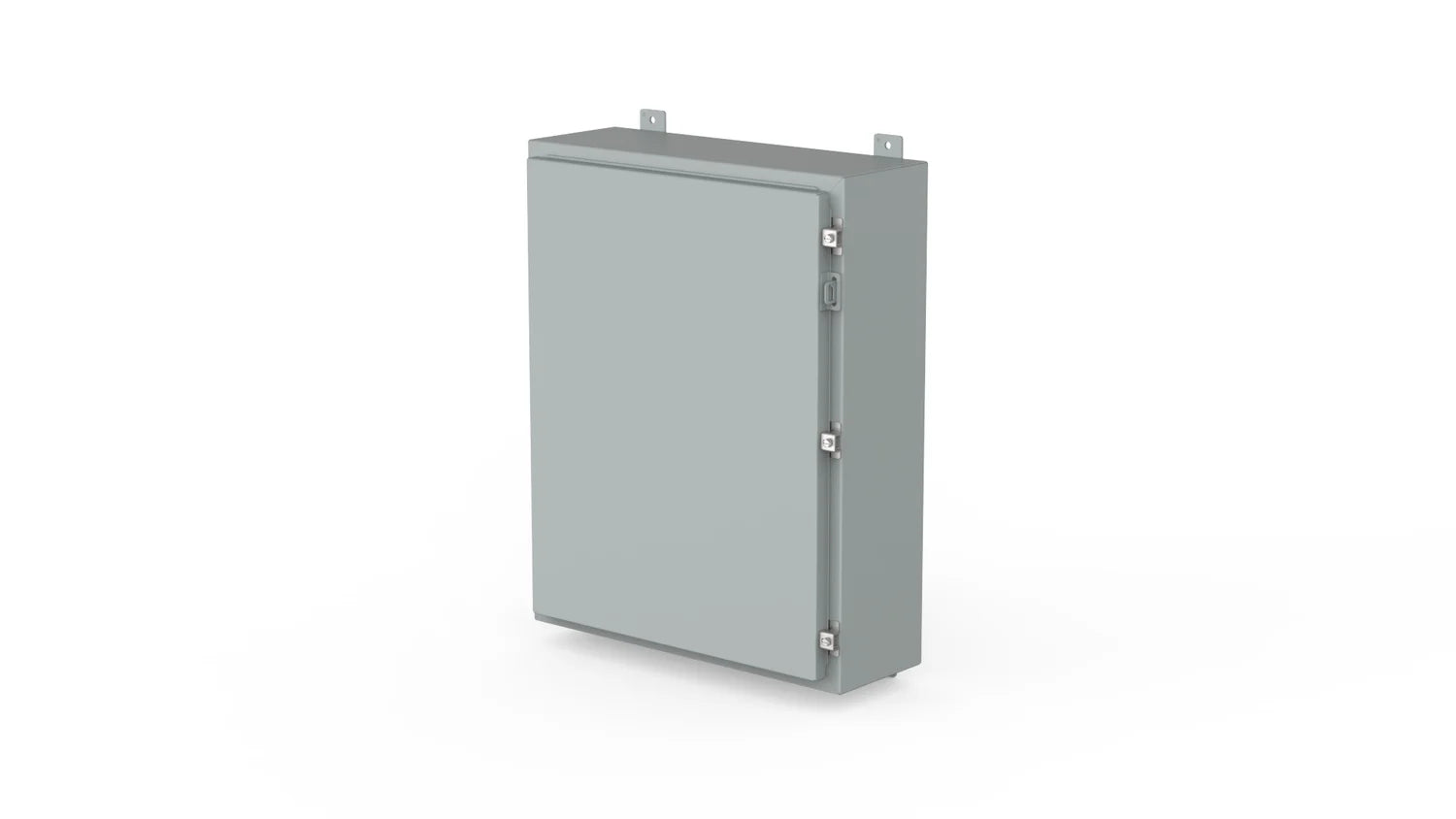

Nvent A363612LP is a steel wall-mount enclosure measuring 36 in x 36 in x 12 in with a clamp/continuous-hinged cover and a 33 in W x 33 in H removable panel. It is NEMA 12 and IP65 rated for dust and water protection and features an oil-resistant gasket, screw-down door clamps, padlockable hasp and bonding provision on the door. Typical applications include electrical control, instrumentation, and junction housing in industrial environments.

• NEMA 12 / IP65 rated steel enclosure with oil-resistant gasket and continuous-hinged cover with screw-down clamps
• Includes 33 in W x 33 in H removable panel, external welded wall-mount brackets, and hasp/staple for padlocking
• 14/16 gauge steel construction (body 14 or 16 ga; door 14 ga), high-impact thermoplastic data pocket, and bonding provision on door

Product Highlights

36 x 36 x 12 in steel wall-mount enclosure, NEMA 12/IP65, clamp/continuous hinge, 33 x 33 in panel

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A363612LP
• Country of Origin: USA

Technical Specifications

• Manufacturer: NVENT
• Manufacturer Part Number: A363612LP
• Series: A12
• Enclosure Type: Medium wall-mount electrical enclosure
• Material: Steel (mild steel)
• Material Thickness: Body: 14 or 16 gauge; Door: 14 gauge
• Finish: Painted / Powder coated (inside and out per sources)
• Dimensions: 36 x 36 x 12 inches (914 mm x 914 mm x 305 mm)
• Panel Size: 33 x 33 inches
• Mounting Type: Wall (external welded-on mounting brackets)
• Cover Type: Clamp / Continuous hinged cover
• Cover Latching: Screw-down door clamps
• Lock: Hasp and staple for padlocking
• Gasket: Oil-resistant foam-in-place gasket
• Data Pocket: High-impact thermoplastic (large)
• Bonding Provision: On door
• NEMA Rating: NEMA 12
• IP Rating: IP65
• Standards/Certifications: UL 508A Listed (File No. E61997); cUL Listed per CSA C22.2 No. 94; CSA File No. 42186; IEC 60529; RoHS Compliant
• Type: Single-door continuous-hinge enclosure
• Color: Gray (ANSI 61 referenced in some sources)
• Weight: 107 lb
