Nvent A30R3012HCR A3M Medium Enclosure 30 in x 30 in x 12 in

Product Description

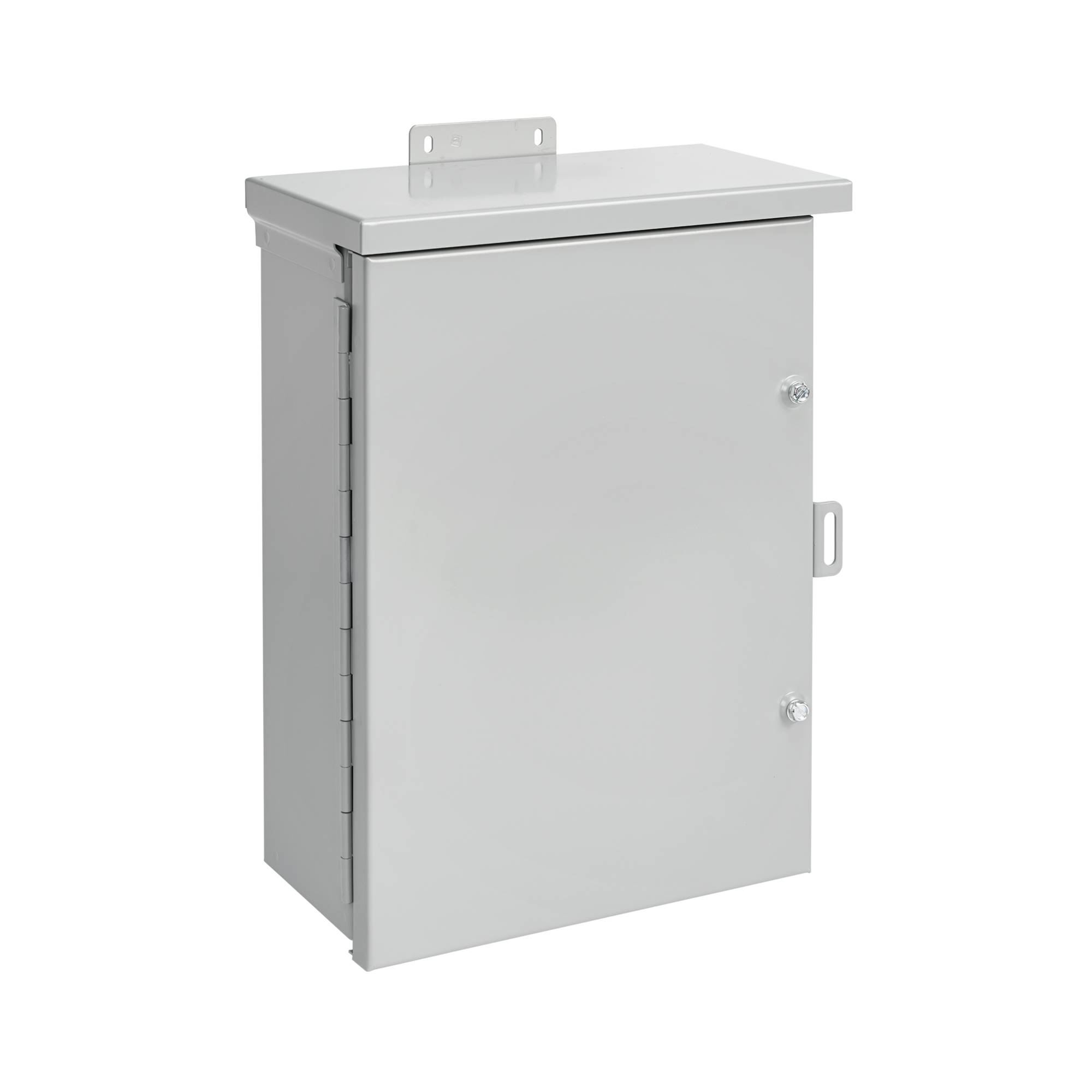

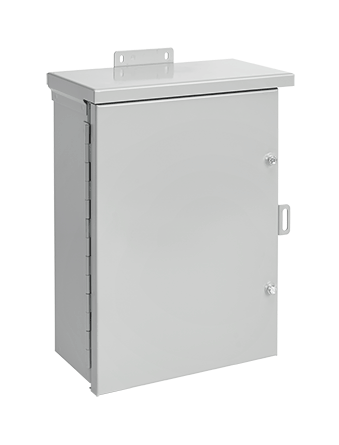

Nvent A30R3012HCR is an A3M medium steel wall-mount enclosure measuring 30 in x 30 in x 12 in, rated NEMA 3R and IP32 for protection from rain, sleet, snow, or dripping water. It features a hinged cover secured with captive plated steel screws and a 16-gauge plated steel continuous hinge with stainless steel pin. The enclosure provides collar studs for optional panel mounting and a hasp and staple for padlocking.

• NEMA 3R / IP32 rated steel enclosure with drip-shield top and seam-free sides
• Hinged cover with captive plated steel screws and 16-ga continuous hinge with stainless pin
• Panel size 27 in x 27 in; collar studs for optional panel mounting; hasp and staple for padlocking

Product Highlights

30 x 30 x 12 in wall-mount steel enclosure, NEMA 3R/IP32, 16-ga hinge, captive screws

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A30R3012HCR
• Country of Origin: Mexico

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: A30R3012HCR
• Series: A3M
• Enclosure Type: Medium wall-mount enclosure
• Material: Steel
• Finish: Galvanized / Powder Coated
• NEMA Rating: NEMA 3R
• IP Rating: IP32
• Dimensions (H x W x D): 30 in x 30 in x 12 in
• Panel Size: 27 in x 27 in
• Body Thickness: 14 ga (1.9 mm)
• Door Thickness: 14 ga (1.9 mm)
• Hinge: 16 ga plated steel continuous hinge with stainless steel pin
• Cover Fastening: Captive plated steel screws
• Padlock Provision: Hasp and staple for padlocking
• Mounting Type: Wall mount
• Drip Shield: Drip-shield top with seam-free sides, front and back
• Gasketing/Knockouts: No gasketing; no knockouts
• Weight: 85 lb
• Panel Type: A30P30
• Perforated Panel: A30P30PP
• Standards/Approvals: UL 50 / 50E Listed; cUL to CSA C22.2 No. 94; File No. E27567; NEMA Type 3R; IEC 60529 (IP32)
• RoHS Compliant: Yes
• Country of Origin: MX
