Nvent a30n30mpp Perforated Mounting Panel 30x30 Gray Steel

Product Description

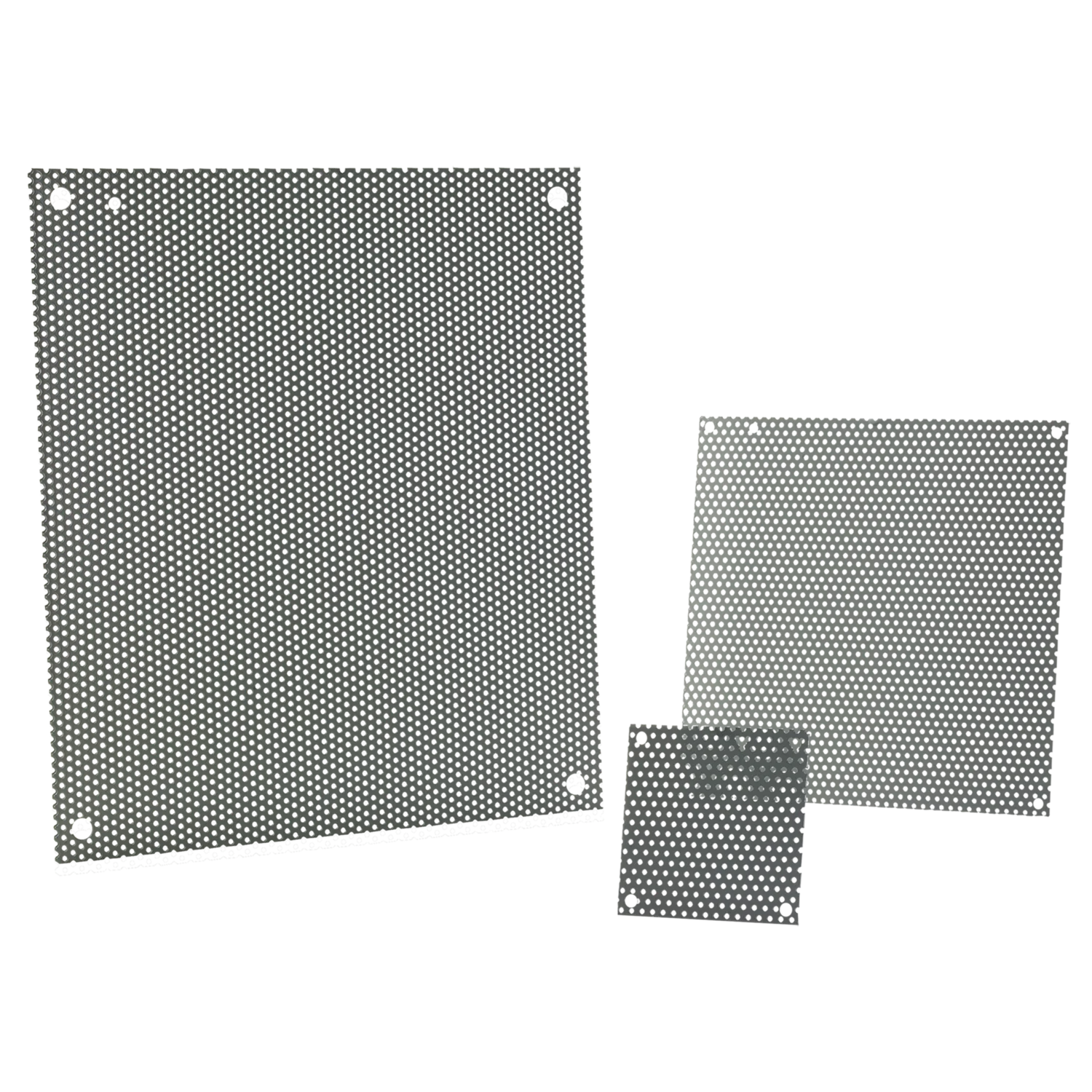

The NVENT a30n30mpp is a perforated steel mounting panel designed for use inside small and medium electrical enclosures rated Type 1 and Type 3R. The panel ships in gray and is sized to fit 30x30 inch enclosures. Pre-perforated holes accept self-tapping screws directly, eliminating the need to measure, mark, or drill mounting points during assembly. This reduces installation time when populating an enclosure with control components, terminal blocks, DIN rail, or other lightweight hardware. Electricians and panel builders working on control assemblies will find this panel a straightforward drop-in solution for organized component layout.

This panel is suited for residential and light commercial electrical control enclosure applications. It is intended for environments where a Type 1 or Type 3R enclosure rating is appropriate, typically indoor installations or protected outdoor locations. The perforated layout supports flexible component placement across the full panel surface, making it useful in new panel builds as well as retrofit or upgrade projects where additional mounting real estate is needed inside an existing enclosure.

Key Features

• Pre-perforated pattern accepts self-tapping screws without drilling or marking
• Sized to fit 30x30 inch medium enclosures
• Compatible with Type 1 and Type 3R enclosure ratings
• Steel construction with gray finish for durability and a clean appearance
• Supports lightweight control components such as terminal blocks, relays, and similar hardware

Compatibility

Designed as an OEM-style mounting panel for small and medium Type 1 and Type 3R electrical enclosures with a 30x30 inch interior mounting dimension.

Installation Notes

Installation is typically performed by a licensed electrician or panel builder. De-energize all circuits and follow NFPA 70 (NEC) requirements before opening any energized enclosure or installing components. Self-tapping screws are used to secure components directly to the perforated panel surface without pre-drilling. Verify that the combined weight of mounted components does not exceed the load capacity supported by the panel mounting hardware and enclosure back wall.

Technical Specifications

• Material: Steel
• Color: Gray
• Enclosure Fit: 30x30 inches
• Enclosure Type Rating: Type 1 and Type 3R
• Enclosure Size Class: Small and Medium

Standard Information

• Brand: NVENT
• Manufacturer Part Number: a30n30mpp
