Product Description

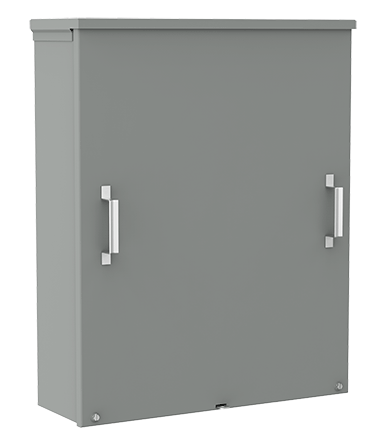

The NVENT A24R248NK is a Hoffman enclosure with a C style body from the A90S3 series, measuring 24 x 24 x 8 inches. Designed for outdoor use as a wiring or junction box, it provides protection from rain, sleet, snow, or dripping water. The enclosure features a screw cover with padlock provision and embossed mounting holes for wall installation.
- Constructed from 16, 14, or 12 ga galvanized steel
- Features a drip shield top and seam-free sides, front, and back
- Equipped with a slip-on removable cover fastened with plated steel screws along the bottom edge
Product Highlights
This NEMA 3R/IP32 rated enclosure is ideal for power distribution and control applications requiring protection from the elements.
Product Information
Standard Information
-
Brand: NVENT
-
Manufacturer Part Number: A24R248NK
-
Country of Origin: MX - Mexico
Technical Specifications
-
Manufacturer Part Number: A24R248NK
-
Application: For outdoor application as a wiring or junction box
-
Series: A90S3
-
Type: C Style Body
-
Height: 24 in
-
Width: 24 in
-
Depth: 8 in
-
Material: Steel
-
Finish: Galvanized
-
Color: Gray
-
Cover Type: Screw
-
Lock: Padlock
-
Mounting Type: Wall
-
NEMA Rating: NEMA 3R/IP32
-
IP Rating: 32
-
Standard: CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27525
-
Body Thickness: 1.9 mm
-
Cover Mounting: Screw Cover
-
Knockouts Included: No
-
Bulletin Number: A90S3
-
IP/NEMA Rating: NEMA 3R, NEMA 3
