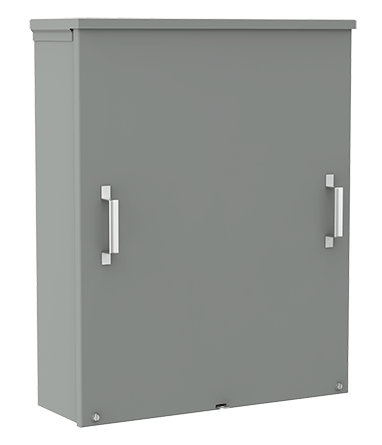

nVent A24R248 HOF NEMA 3R ENCLOSURE

Product Description

The nVent A24R248 is a Hoffman enclosure designed for electrical applications. With a height of twenty-four inches, a width of twenty-four inches, and a depth of eight inches, this enclosure is well-suited for outdoor use as a junction box. It features a screw cover and is made of galvanized steel, ensuring durability in various environments.

• NEMA 3R/IP32 rated for outdoor applications
• Lockable padlock feature for security
• Multiple knockout sizes for flexible cable entry

Product Highlights

This enclosure is ideal for protecting electrical connections from the elements while providing easy access for maintenance and modifications. It is compliant with multiple safety standards making it a reliable choice for contractors and electricians.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351038980

Technical Specifications

• Application: For outdoor application as a wiring or junction box
• Cable Entry Size: (4) 3/4 to 1 in, (4) 1/2 to 3/4 in, (1) 1 to 1-1/4 in Knockout Bottom
• Color: Gray
• Cover Type: Screw
• Depth: 8 in
• Finish: Galvanized
• Height: 24 in
• Lock: Padlock
• Manufacturer Part Number: A24R248
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 3R/IP32
• Series: A90S3
• Standards/Approvals: cUL Listed, CSA C22.2 File No. 94, UL 50, IEC 60529
• Type: C Style Body
• Width: 24 in
