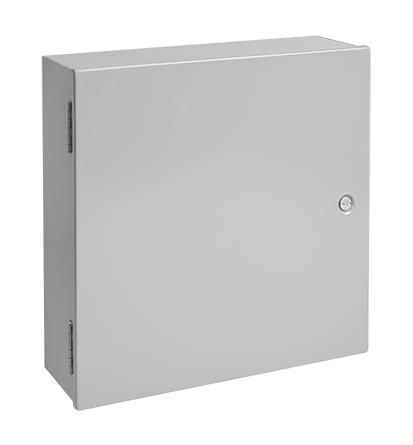

nVent A24N16ALP HOF MED TYPE 1 PANEL ENCLOSURE

Product Description

nVent HOFFMAN A24N16ALP is a medium enclosure designed for various applications. This product measures twenty-four inches in length, sixteen inches in width, and six point six two inches in depth. It is built to satisfy NEMA 1/IP30 standards and constructed from steel with a polyester powder painted finish. Key features include a butt hinged cover and a slotted flush latch lock.

• Mounting holes located on the back.
• Suitable for indoor applications.
• Easy access with butt hinges.

Product Highlights

This enclosure is designed to offer protection for electrical and electronic controls in mild environments. It is ideal for applications that do not require dust- or oil-tight enclosures.

Product Information

Standard Information

• Manufacturer: nVent
• Model Number: A24N16ALP

Technical Specifications

• Color: Gray
• Cover Type: Butt Hinged
• Depth: 6.62 inches
• Finish: Polyester Powder Painted
• Length: 24 inches
• Lock: Slotted Flush Latch
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 1/IP30
• Panel Size: 14-1/2 inches W x 21 inches H
• Series: A1M
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 40, CSA File No. 42184, IEC 60529, UL 50, UL 50E
• Type: Medium
• Width: 16 inches
