nVent A24H16ALP HOFF WALL-MOUNT TYPE 4 ENCLOSURE 24 in x 16 in x 6 in

Product Description

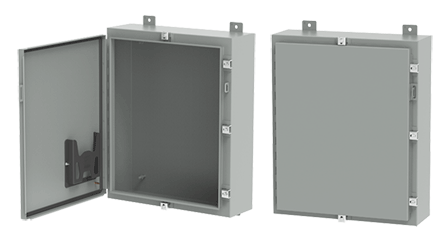

The nVent HOFFMAN A24H16ALP is a wall-mount enclosure designed for both indoor and outdoor use. This 1-door enclosure measures twenty-four inches in length, sixteen inches in width, and six inches in depth. It is constructed from steel and features a gray polyester powder finish, ensuring durability and corrosion resistance.

• Wall mount design for secure placement
• NEMA 4/IP66 rated for protection against dust and water
• Removable door with continuous hinge for easy access

Product Highlights

This product is suitable for housing electrical equipment in various environments. It provides a reliable enclosure that meets strict safety standards.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: A24H16ALP

Technical Specifications

• Application: Indoor/Outdoor Applications
• Color: Gray
• Cover Type: Clamp/Continuous Hinged
• Depth: 6 in
• Finish: Polyester Powder Painted
• Length: 24 in
• Lock: Hasp and Staple/Padlock
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Panel Size: 13 in W x 21 in H
• Series: A4 Series
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, CSA File No. 42186, IEC 60529, RoHS Compliant, UL 508A File No. E61997
• Type: 1-Door
• Width: 16 in
