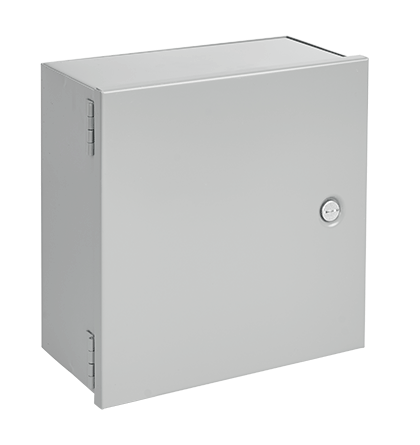

nVent A20N126 HOF NEMA 1 ENCLOSURE 20 in x 12 in x 6 in

Product Description

The nVent HOFFMAN A20N126 NEMA 1 Enclosure is designed for small-scale electrical applications. With dimensions of twenty inches in length, twelve inches in width, and six inches in depth, this enclosure provides a safe and accessible housing for electrical controls and instruments.

• Specifications meet NEMA 1/IP30 ratings.
• Constructed from steel with a polyester powder paint finish.
• Features a butt-hinged cover for easy access.

Product Highlights

This enclosure is suitable for both indoor and outdoor applications, ensuring protection against light rain and dust. Ideal for use as a junction box or for housing small control systems.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351034670

Technical Specifications

• Lock: Slotted Flush Latch
• Type: Small
• Color: Gray
• Depth: 6 inches
• Width: 12 inches
• Length: 20 inches
• Material: Steel
• NEMA Rating: NEMA 1/IP30
• Panel Size: 10-1/4 inches W x 18-1/4 inches H
• Series: A1SM
• Mounting Type: Wall
• Specifications Approved: cUL Listed, RoHS Compliant
