nVent A20H16BLP A4 Series 1-Door Enclosure

Product Description

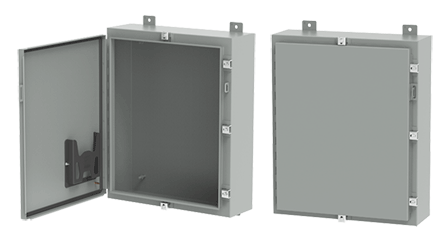

The nVent HOFFMAN A20H16BLP is a reliable 1-door enclosure designed for both indoor and outdoor applications. It measures twenty inches in length, sixteen inches in width, and eight inches in depth. This unit features a NEMA 4/IP66 rating, which provides strong protection against water and dust. The enclosure is made of steel and includes a clamp continuous hinged cover for easy access.

• 1-door design for versatile access.
• NEMA 4/IP66 rating for superior protection.
• Made of durable steel with a powder-coated finish.

Product Highlights

This enclosure is ideal for housing electrical components safely and securely in various environments.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: A20H16BLP

Technical Specifications

• Application: Indoor/Outdoor Applications
• Color: Gray
• Cover Type: Clamp/Continuous Hinged
• Depth: 8 inches
• Finish: Polyester Powder Painted
• Length: 20 inches
• Lock: Hasp and Staple/Padlock
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Panel Size: 13 inches W x 17 inches H
• Series: A4 Series
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E61997 | CSA File No. 42186 | IEC 60529 | RoHS Compliant | UL 508A File No. E61997
• Type: 1-Door
• Width: 16 inches
