Product Description

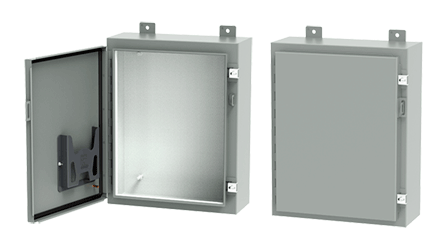

nVent HOFFMAN A201612LP is a medium enclosure designed for use in various electrical applications. This enclosure features a robust design with dimensions of twenty inches in length, sixteen inches in width, and twelve inches in depth. It meets NEMA 12/IP65 ratings, ensuring protection against dust and water. This enclosure is mounted on walls and constructed from durable painted steel.
- Manufactured from sturdy steel
- Includes a padlocking hasp for security
- Easy installation with external wall mounting brackets
Product Highlights
This enclosure is suitable for both indoor and outdoor applications as it protects electrical controls and connections in harsh environments.
Product Information
Standard Information
Technical Specifications
-
MPN: A201612LP
-
Material: Steel
-
Finish: Painted
-
NEMA Rating: NEMA 12/IP65
-
Panel Size: 13 in W x 17 in H
-
Lock Type: Hasp and Staple/Padlock
-
Mounting Type: Wall
-
Series: A12
-
Depth: 12 in
-
Width: 16 in
-
Length: 20 in
-
Standards/Approvals: cUL Listed per CSA C22.2 File No. 94|CSA File No. 42186|IEC 60529|RoHS Compliant|UL 508A Listed File No. E61997
