nVent A201610LP HOF NEMA-12 ENCL. 20 in x 16 in x 10 in

Product Description

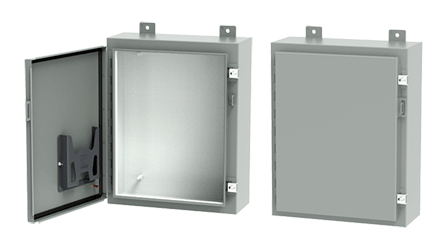

The nVent HOFFMAN A201610LP enclosure is designed for medium applications. This enclosure measures twenty inches long, sixteen inches wide, and ten inches deep. It is rated NEMA 12/IP65, allowing protection from dust and water ingress. The enclosure features a clamp and continuous hinged cover for access.

• Wall-mounted design for easy installation
• Built with painted steel for durability
• Padlocking hasp and staple included for security

Product Highlights

This enclosure includes external wall mounting brackets and screw-down door clamps for secure closure.

Product Information

Standard Information

• Brand: nVent
• MPN: A201610LP

Technical Specifications

• Color: Gray
• Cover Type: Clamp/Continuous Hinged
• Depth: 10 in
• Finish: Painted
• Length: 20 in
• Lock: Hasp and Staple/Padlock
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Panel Size: 13 in W x 17 in H
• Series: A12
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E61997|CSA File No. 42186|IEC 60529|RoHS Compliant|UL 508A Listed File No. E61997
• Type: Medium
• Width: 16 in
