nVent A18R188 HOF Enclosure 18.00x18.00x8.00

Product Description

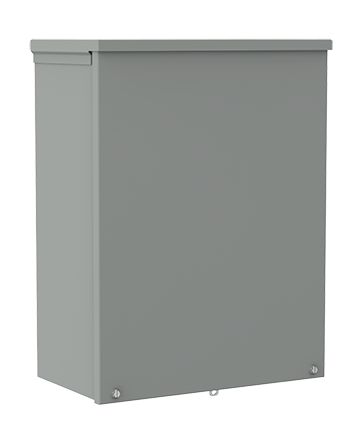

The nVent A18R188 is a Hoffman enclosure designed for use in outdoor wiring or junction applications. Constructed with a B-Style body, this enclosure measures eighteen inches in height, eighteen inches in width, and eight inches in depth. It is made of galvanized steel and features a screw cover design to provide security and protection against outdoor elements.

• Suitable for outdoor wiring or junction box applications
• NEMA 3R/IP32 rated for enhanced durability
• Four knockouts for varying cable entry sizes

Product Highlights

This enclosure is built for wall mounting and offers lock provisions for added security. The design includes embossed mounting holes for easy installation.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: A18R188

Technical Specifications

• Application: For outdoor application as a wiring or junction box
• Cable Entry Size: (4) 3/4 to 1 in, (4) 1/2 to 3/4 in, (1) 1 to 1-1/4 in knockout bottom
• Color: Gray
• Cover Type: Screw
• Depth: 8 in
• Finish: Galvanized
• Height: 18 in
• Lock: Padlock
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 3R/IP32
• Series: A90S3
• Standards/Approvals: cUL Listed, CSA C22.2 File No. 94, UL 50, UL 50E Listed
• Type: B-Style Body
• Width: 18 in
