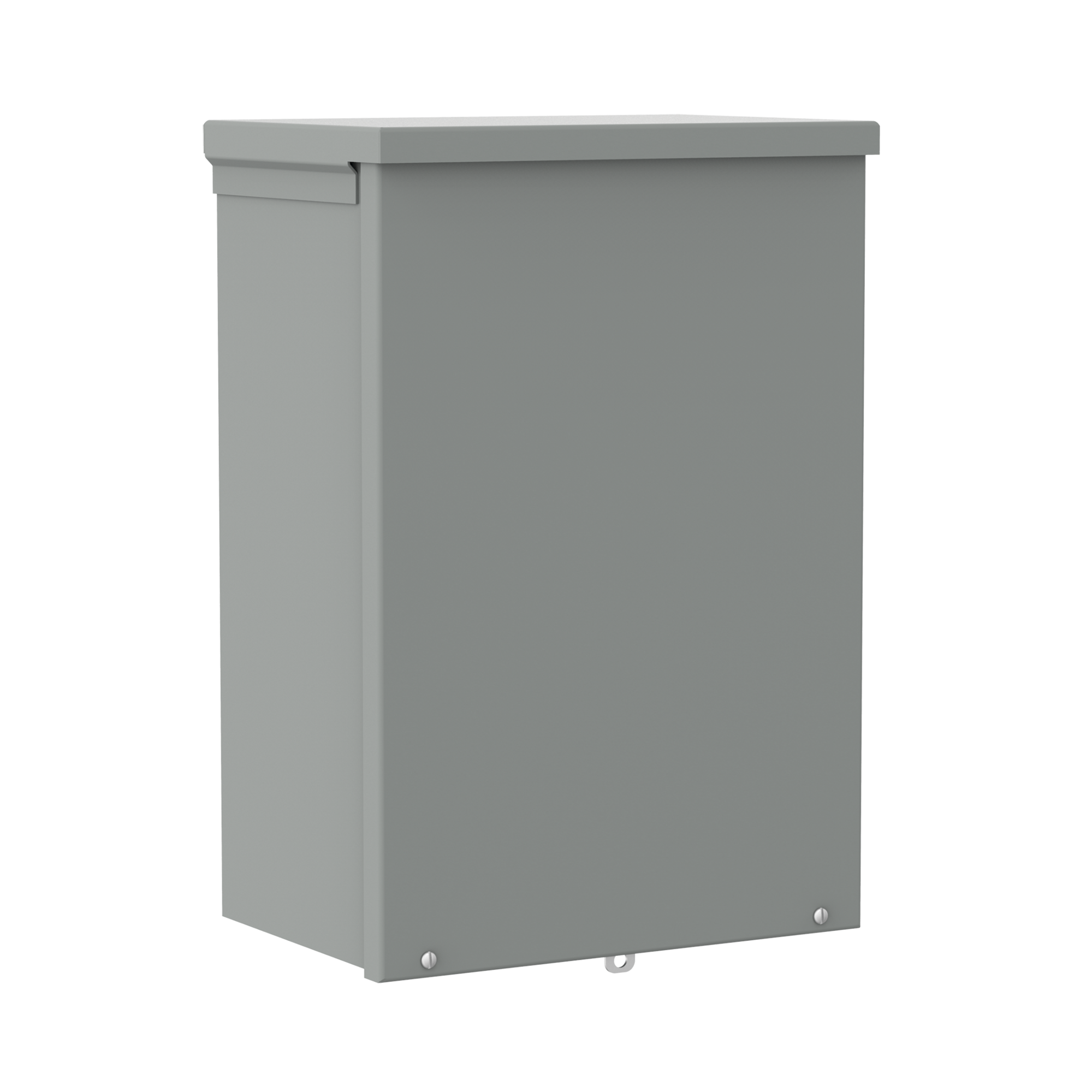

Nvent A18R128 Screw-Cover Drip-Shield Type 3R With Knockouts, 18x12x8, Steel

Product Description

The NVENT A18R128 is a drip-shield screw-cover, Type 3R enclosure used as a wiring or junction box to protect controls in outdoor applications requiring protection from rain, sleet, snow, or dripping water. It features a slip-on removable cover fastened with plated steel screws. The enclosure is finished with paint over plated surfaces.

• Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
• Slip-on removable cover fastened with plated steel screws along bottom edge
• Embossed mounting holes on back of enclosure

Product Highlights

The NVENT A18R128 enclosure is ideal for power distribution and junction box applications, providing NEMA Type 3R protection in outdoor environments.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A18R128
• Country of Origin: Mexico

Technical Specifications

• Article Number: 38550
• Height: 18 in
• Width: 12 in
• Depth: 8 in
• Material: Mild Steel
• Finish: Galvanized; Powder Coated
• Color: Gray
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Knockout Pattern: C-D-E-F-G
• Mounting: Internal Holes
• Body Style: A
• UPC: 783510385507
• Bulletin Number: A90S3
• UNSPSC Code: 31260000
• Type: Pull and Junction Boxes
• Enclosure: 3R
• IP Rating: 32
• Size: 18.00x12.00x8.00 in
• Standard: CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27525
• Sub Brand: Hoffman
• NEMA Rating: 3R Weather-resistant, except dust
• Application: Power Distribution
• Material Specification: 16 Gauge Body, 16 Gauge Cover
• Cover Type: Solid
• Cover Mounting: Slip-on
• Cover Latching: Screw
• Knockouts: Bottom
• EU RoHS Indicator: NEW
• Harmonization Tariff Schedule Code: 8538100000
• Height [Metric]: 24.7650 cm
• Item Group: A90S3
• Length [Metric]: 50.1650 cm
• Manufacturer: HOFFMAN ENCLOSURES
• UNSPSC: 39121303
• UPC 11: 78351038550
• UPC 12: 78351038550
• Width [Metric]: 32.3850 cm
