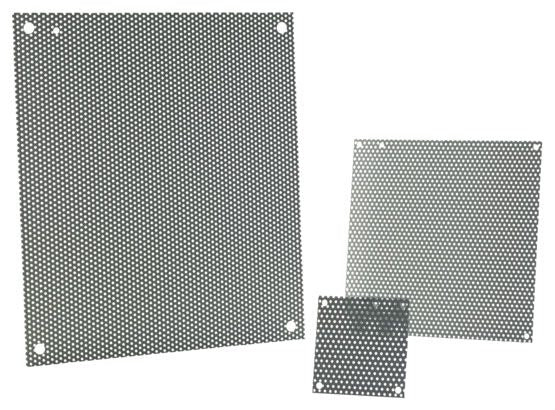

Nvent A16P16PP Enclosure Panel 14.62x13.12 Nema 3R

Product Description

The NVENT A16P16PP is a replacement panel designed for use with NEMA 3R rated electrical enclosures. Panels of this type serve as the interior mounting surface for circuit breakers, terminal blocks, din rail, and other electrical components housed within outdoor or weatherproof enclosures. Measuring 14.62 inches wide by 13.12 inches tall, this panel fits NVENT enclosures built to NEMA 3R specifications, which are rated for outdoor use and protect against falling dirt, rain, sleet, and snow. Installation is typically performed by licensed electricians during new construction, service upgrades, or enclosure retrofits.

This panel is suited for residential and light commercial applications where a NEMA 3R outdoor enclosure is required. Common install scenarios include meter centers, load centers, disconnect enclosures, and general-purpose outdoor electrical panels. The 14.62 x 13.12 inch footprint targets mid-range enclosure sizes in the NVENT Hoffman product line. Electricians sourcing a direct replacement or adding an additional sub-panel insert will find this panel sized for standard Hoffman-series enclosures of matching internal dimensions.

Key Features

• Rated for NEMA 3R enclosures — suitable for outdoor and weatherproof installations
• Panel dimensions of 14.62 inches by 13.12 inches provide ample mounting surface for electrical components
• Weighs 8 pounds, indicating a solid steel construction typical of Hoffman-series panels
• Designed as a direct-fit interior panel for compatible NVENT enclosure bodies
• Flat mounting surface supports din rail, terminal blocks, breakers, and other standard hardware

Compatibility

Designed as an OEM-style replacement interior panel for NEMA 3R rated enclosures with an interior panel opening of approximately 14.62 inches by 13.12 inches.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the enclosure before removing or installing any interior panel. Secure the panel to the enclosure using the appropriate mounting hardware for the enclosure model. Verify that all components mounted to the panel are rated for the enclosure environment before closing and re-energizing the system.

Technical Specifications

• Panel Width: 14.62 inches
• Panel Height: 13.12 inches
• Weight: 8 pounds
• NEMA Rating: 3R
• UPC: 78351014747

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A16P16PP
