nVent A16N12ALP A1M Medium Enclosure 16 in 12 in 6.62 in NEMA 1/IP30

Product Description

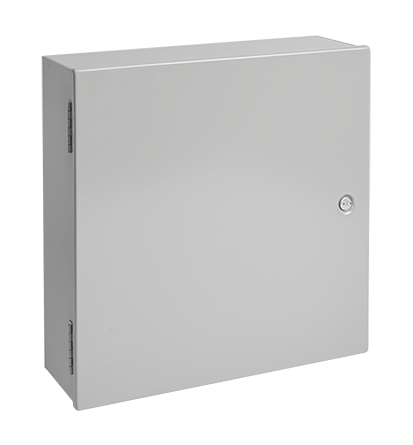

The nVent HOFFMAN A16N12ALP is a medium wall mount enclosure designed for electrical applications. This enclosure measures sixteen inches in length, twelve inches in width, and six point six two inches in depth. It has a NEMA 1/IP30 rating, ensuring basic protection against dust and accidental contact. The enclosure features a butt hinged cover for easy access, accommodating a panel size of ten and a half inches by thirteen inches. Made from steel and finished with a polyester powder coating, it is suitable for various installations.

• Wall mount installation
• Features a slotted flush latch for security
• Durable steel construction with powder coating

Product Highlights

This enclosure is ideal for applications that require basic protection and ease of access.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351085930

Technical Specifications

• Type: Medium
• Color: Gray
• Cover Type: Butt Hinged
• Depth: 6.62 inches
• Width: 12 inches
• Length: 16 inches
• Material: Steel
• Finish: Polyester Powder Painted
• Lock: Slotted Flush Latch
• NEMA Rating: NEMA 1/IP30
• Panel Size: 10-1/2 inches W x 13 inches H
• Series: A1M
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 40, IEC 60529, UL 50, UL 50E
