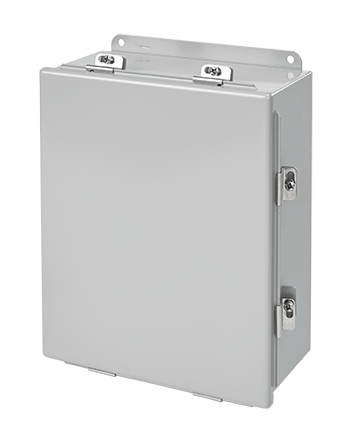

nVent A161410CHNF Hoffman Continuous Hinge W Clamps 4 16 In x 14 In x 10 In

Product Description

The nVent A161410CHNF is a Hoffman Junction Box designed for reliability. It measures sixteen inches in height, fourteen inches in width, and ten inches in depth. This junction box meets NEMA 4/IP66 standards, providing protection against dust and water. The continuous hinged and screw clamp cover ensures secure closure, making it suitable for various indoor and outdoor applications.

• Seams continuously welded and ground smooth
• Stainless steel hinge pin providing durability
• Oil-resistant gasket for secure sealing

Product Highlights

This product combines a continuous hinge with stainless steel clamps designed to protect contents from environmental conditions.

Product Information

Standard Information

• Category: Electrical > Enclosures, Cabinets & Racks > Enclosure Accessories
• Manufacturer: nVent

Technical Specifications

• Application: Used to provide environmental protection and security in indoor or outdoor applications
• Color: Gray
• Cover Type: Continuous Hinged/Screw Clamp
• Depth: 10 inches
• Finish: Polyester Powder Painted
• Height: 16 inches
• Manufacturer Part Number: A161410CHNF
• Material: Mild Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Panel Size: 14.75 x 12.88 inches
• Series: A51NF
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, CSA File No. 42184, IEC 60529, UL 50/50E Listed File No. E27567
• Width: 14 inches
