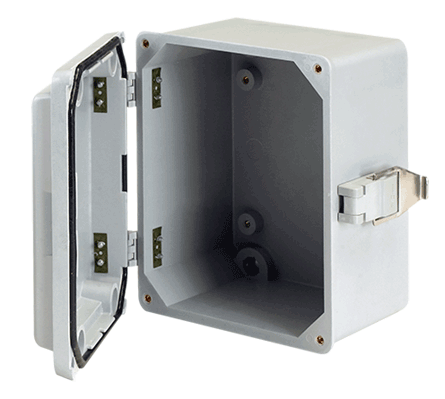

nVent A16128JFGQRR Junction Box 15-1/2 inches height 12 inches width 8.28 inches depth

Product Description

The nVent A16128JFGQRR Junction Box is designed for challenging environments. It measures fifteen and a half inches high, twelve inches wide, and eight and twenty-eight hundredths inches deep. This enclosure meets NEMA 4X and IP66 ratings for resistance to water and dust. It features a solid and hinged cover, ensuring easy access while maintaining protection.

• Constructed from halogen-free fiberglass for durability.
• Includes a seamless foam gasket for a watertight seal.
• Threaded internal bosses allow for panel installation.

Product Highlights

This product is ideal for outdoor applications where environmental factors are a concern. It provides robust protection for electrical components and connections.

Product Information

Standard Information

• Material: Fiberglass
• Color: Light Gray

Technical Specifications

• Height: 15-1/2 inches
• Width: 12 inches
• Depth: 8.28 inches
• NEMA Rating: NEMA 4X/IP66
• Mounting Type: Wall
• Cover Type: Solid/Hinged
• Panel Size: 12.75 x 10.88 inches
• Lock Type: Quick Release Latch/Padlock Hasp
