nVent A1412CHNF HOF NEMA-4 BOX

Product Description

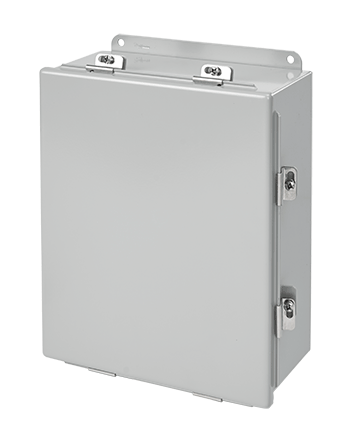

The nVent A1412CHNF Junction Box is designed for environmental protection in various applications. This box features NEMA 4/IP66 rating, ideal for outdoor use.

• Continuous hinged and screw clamp cover
• Made of durable steel
• Compatible with 12.75 by 10.88 inch panels

Product Highlights

This product offers a high level of durability and safety, making it suitable for both indoor and outdoor electrical installations.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351055750

Technical Specifications

• Application: Used to provide environmental protection and security in indoor or outdoor applications
• Color: Gray
• Cover Type: Continuous Hinged/Screw Clamp
• Depth: 6 inches
• Finish: Polyester Powder Painted
• Height: 14 inches
• Manufacturer Part Number: A1412CHNF
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Panel Size: 12.75 x 10.88 inches
• Series: A51NF
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E27567|CSA File No. 42184|IEC 60529|UL 50/50E Listed File No. E27567
• Width: 12 inches
