nVent A12R128 A12R128 NEMA3R SCR CVR BOX HOFF

Product Description

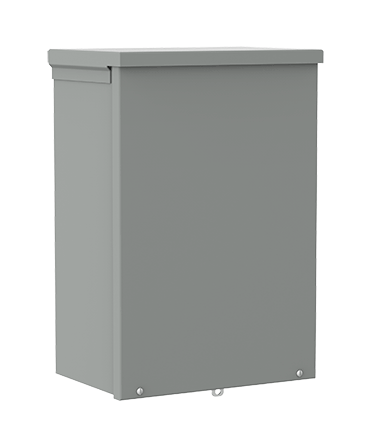

The nVent A12R128 is a versatile enclosure designed for outdoor applications. This product features a NEMA 3R/IP32 rating suitable for use as a wiring or junction box. The enclosure has an A style body and is ideal for protecting wiring in harsh environments.

• Durable steel construction with a galvanized finish
• Knockouts for easy cable entry
• Lockable screw cover for added security

Product Highlights

This enclosure is a reliable choice for outdoor wiring needs, featuring multiple knockouts for cable entry and a secure screw cover.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351037990

Technical Specifications

• Application: For outdoor application as a wiring or junction box
• Cable Entry Size: (2) 3/4 to 1 in, (2) 1/2 to 3/4 in, (1) 1 to 1-1/4 in Knockout Bottom
• Color: Gray
• Cover Type: Screw
• Depth: 8 in
• Finish: Galvanized
• Height: 12 in
• Lock: Padlock
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 3R/IP32
• Series: A90S3
• Standards/Approvals: cUL Listed|CSA C22.2 File No. 94|File No. E27525|UL 50|UL 50E Listed File No. E27525|IEC 60529
• Type: A Style Body
• Width: 12 in
