nVent A12R126HCR HOF ENCLOSURE 12 in 12 in 6 in

Product Description

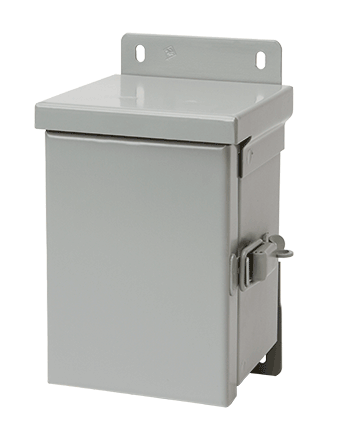

The nVent HOFFMAN A12R126HCR is a wall-mounted enclosure designed for electrical applications. It has dimensions of twelve inches in length, twelve inches in width, and six inches in depth. This enclosure is built for NEMA 3R requirements, making it suitable for outdoor use where protection from rain, sleet, and snow is necessary. The hinged cover allows easy access to the internal components.

• Drip shield top with seam-free sides
• Padlocking feature with zinc-plated draw pull catch
• Constructed from galvanized steel with powder-coated finish

Product Highlights

The nVent HOFFMAN enclosure offers secure and efficient housing for electrical and control equipment.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: A12R126HCR

Technical Specifications

• Cable Entry Size: (3) 3/4 to 1 in, (2) 1/2 to 3/4 in Knockout Bottom
• Color: Gray
• Cover Type: Hinged
• Depth: 6 in
• Finish: Galvanized/Powder Coated
• Length: 12 in
• Lock: Draw Pull Catch Padlock
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 3R
• Panel Size: 10-1/4 in W x 10-1/4 in H
• Series: A3SM
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E27567|IEC 60529|UL 50|50E Listed File No. E27567
• Type: Small
• Width: 12 in
