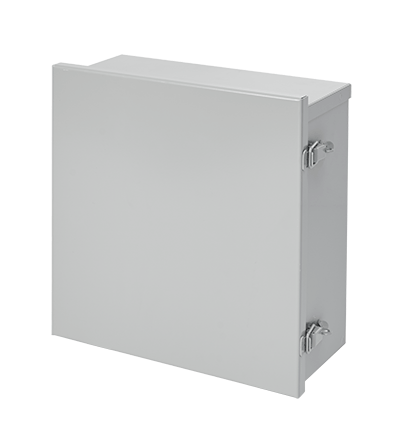

nVent A12R126HCLO A3LO Enclosure 3R 12 in x 12 in x 6 in

Product Description

The nVent HOFFMAN A12R126HCLO is a versatile enclosure designed for electrical applications. It measures twelve inches in length, twelve inches in width, and six inches in depth. This enclosure is rated NEMA 3R, making it suitable for outdoor use and capable of protecting components from rain, sleet, snow, and dripping water.

• Made of sixteen-gauge galvanized steel
• Hinged cover equipped with a pull catch padlock
• Includes embossed mounting holes for easy installation

Product Highlights

The enclosure features a drip shield top that prevents water ingress, enhancing its durability in various weather conditions. Each enclosure provides provisions for padlocking, ensuring security for the contents inside. The seamless construction with gasketing along the top of the door provides added protection against environmental factors.

Product Information

Standard Information

• Manufacturer: nVent
• Product SKU: 2067114

Technical Specifications

• Application: For protecting components in applications subject to rain, sleet, snow, or dripping water
• Color: Gray
• Cover Type: Hinged/Lift-Off
• Depth: 6 inches
• Finish: Galvanized/Powder Coated
• Length: 12 inches
• Lock: Pull Catch Padlock
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 3R
• Panel Size: 8.88 inches W x 10.75 inches H
• Series: A3LO
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E27567 | CSA Certified | File 42184 | IEC 60529 | UL 50/50E Listed/File No. E27567
• Width: 12 inches
